LOGR-S Data Logger

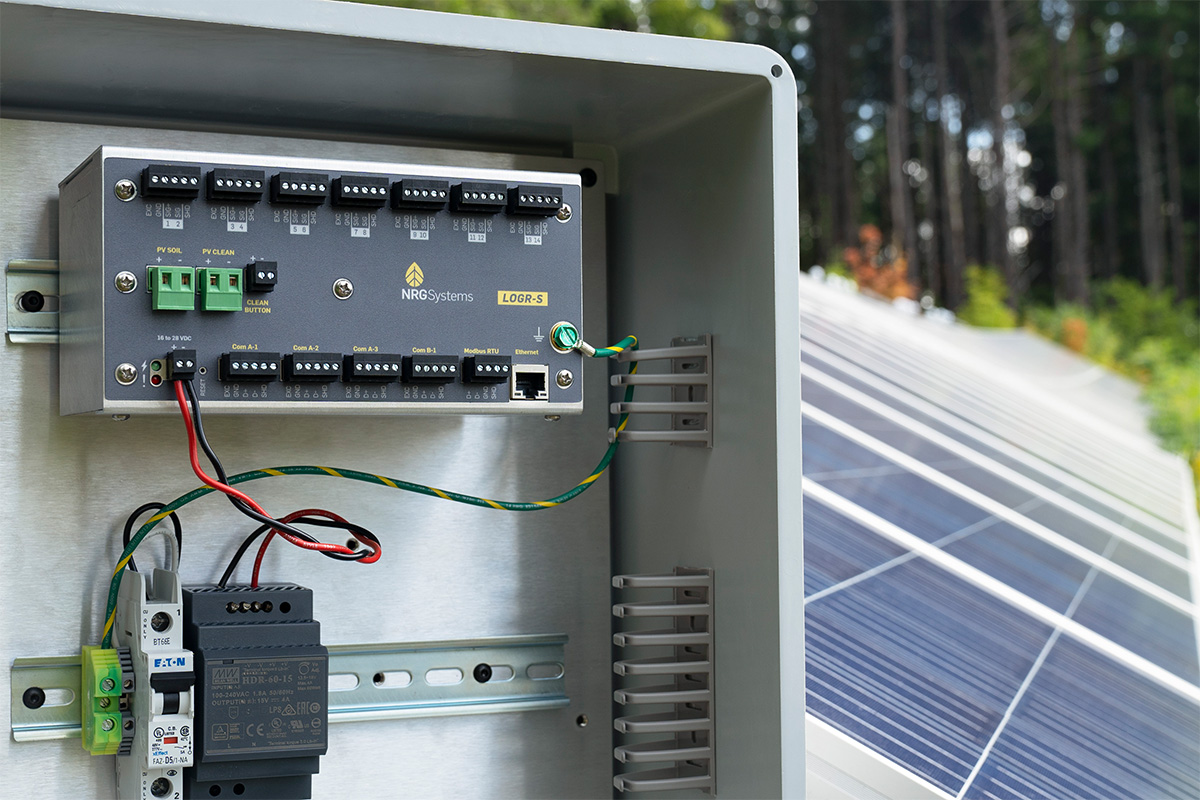

The LOGR-S Data Logger is an advanced data logging system that is purpose-built for solar resource monitoring on operational utility-scale PV plants.

LOGR-S Embedded Configuration Software

Details

LOGR-S is NRG Systems’ first data logger designed specifically for the solar energy industry. Based on decades of data logger development and manufacturing experience, LOGR-S features the same user-friendliness that has come to define NRG’s data logger line, while satisfying the increasing demand for reliable, high-quality solar resource measurements on operating PV plants.

LOGR-S integrates seamlessly with NRG’s Solar Resource Monitoring (SRM) System, allowing users to plug into their plant’s SCADA network with ease. LOGR-S’ modular design can also be adjusted to accommodate a project’s unique measurement requirements. Additionally, LOGR-S features:

compatibility with the most commonly used SRM sensors
high-resolution, high-accuracy analog measurements
built-in and optional PV input module for soiling measurements
configurable serial measurement capability for data acquisition from digital sensors
integrated communications capabilities
storage capacity for historical real-time data
automated delivery of historical data

LOGR-S is supported by our expert Technical Services team who can assist our global customers via in-the-field and remote trainings, installation assistance, and more.

Benefits

High-utility data logger and real-time sensor interface for solar resource monitoring
Purpose-built, modular platform delivers straightforward functionality
Flexible and scalable design accommodates each project's unique requirements
Accurate and reliable data collection for critical measurements
Increased efficiency when installing and integrating environmental sensors into SCADA systems

GET PRODUCT UPDATES

We'll let you know when new features are added and keep you posted on other LOGR-S news.

Brochures (2)

Manuals (1)

Manual: LOGR-S Data Logger

Firmware (1)

LOGR-S Data Logger Firmware

Quick Guide Videos (12)

Instruction Sheets (2)

Webinars (1)

Webinar: What's New in Solar at NRG Systems?

Applications

Solar Resource Monitoring

Specifications Print Specs

Description
	PV (#9431)
Instrument type	High utility data logger and real-time sensor interface
Applications	Solar resource monitoring
Data Collection
Sampling interval	1 Hz (IEC 61724-1 compliant)
Averaging interval	1-minute (IEC 61724-1 compliant)
Real time clock	Internal battery-backed with time synchronization
Storage medium	8 GB microSD
Maximum data storage	90 days (all data with maximum configuration)
Channel Capacity	• Fourteen (14) analog channels (single-ended); Seven (7) differential • Twenty-four (24) serial channels via two (2) RS-485 communication ports • Two (2) PV Input channels (soiling measurement) • Ten (10) calculated channels plus dedicated soiling ratio calculation • Counter channel support coming soon
Analog Channels Sensor Compatibility	Compatible with a wide array of sensors including: • Standard analog sensors including NRG meteorological sensor suite (T60 Temperature, BP60 Barometric Pressure, RH5X Relative Humidity, etc.) • Industry-standard pyranometers (Hukseflux SRxx series, EKO MS-xx series, Kipp & Zonen CMP series, etc.) • 10K NTC Thermistor and RTD (PT100, PT1000) type temperature sensors
Analog Measurement Accuracy	Uncertainty (k=2): 450 µV @ (-10 to +10) V 61 µV @ (-1 to +1) V 8.5 µV @ (-70 to +70) mV
RS-485 Channels Sensor Compatibility	Supports configurable Modbus RTU data acquisition. Contact NRG to discuss support for additional model types or protocols.
Parameters recorded for each channel	• Average • Standard deviation • Minimum/Maximum 1-sec sample Note: Statistics reported on each channel dependent on measurement type
Data delivery	• Real-time data delivery via Modbus registers (TCP via Ethernet or RTU via RS-485) • Scheduled delivery of historical data via FTP • On-demand transfer of historical data via internal web server to FTP
Security	Password-protected web server access
Resolution
Analog measurement resolution	24-bit signed A/D conversion
Software
Type	• Onboard web server for logger configuration and administration • Modbus Demo Client to test configured unit prior to connecting to SCADA
Configuration

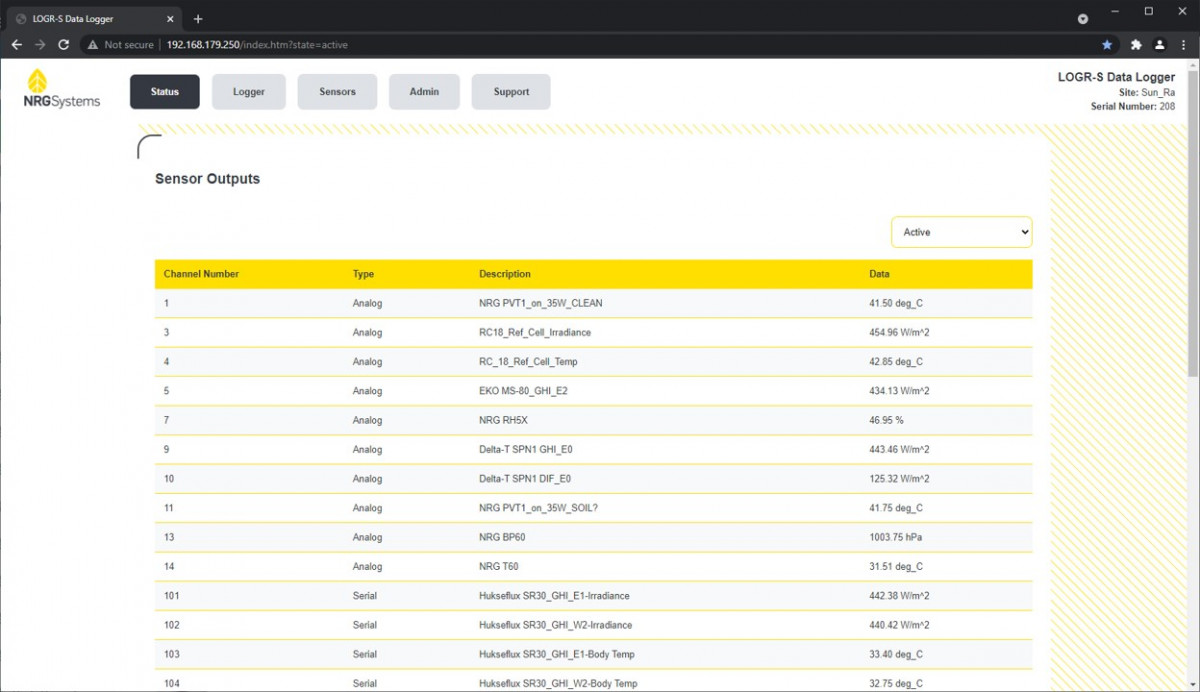

User interface	• Web-based user interface via Ethernet connected computing device with Google Chrome browser • Recessed reset button on front panel • Audible beeper for user feedback
Connections

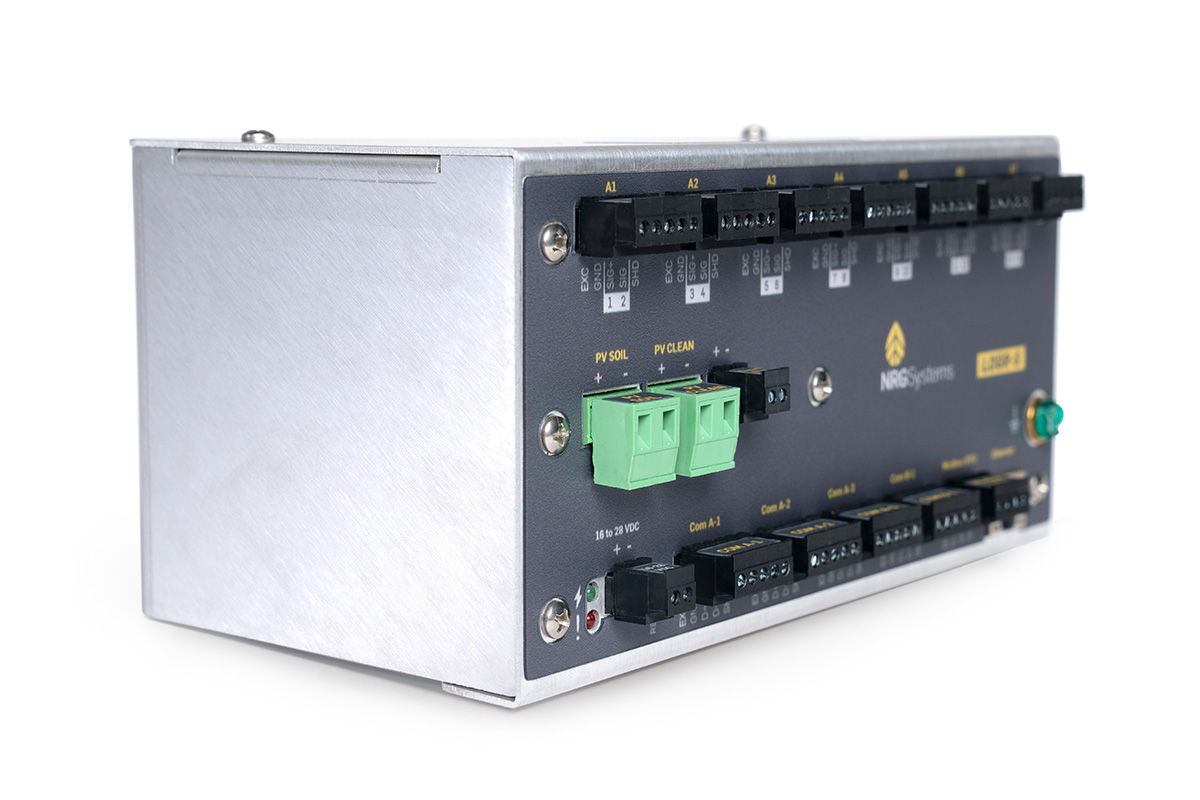

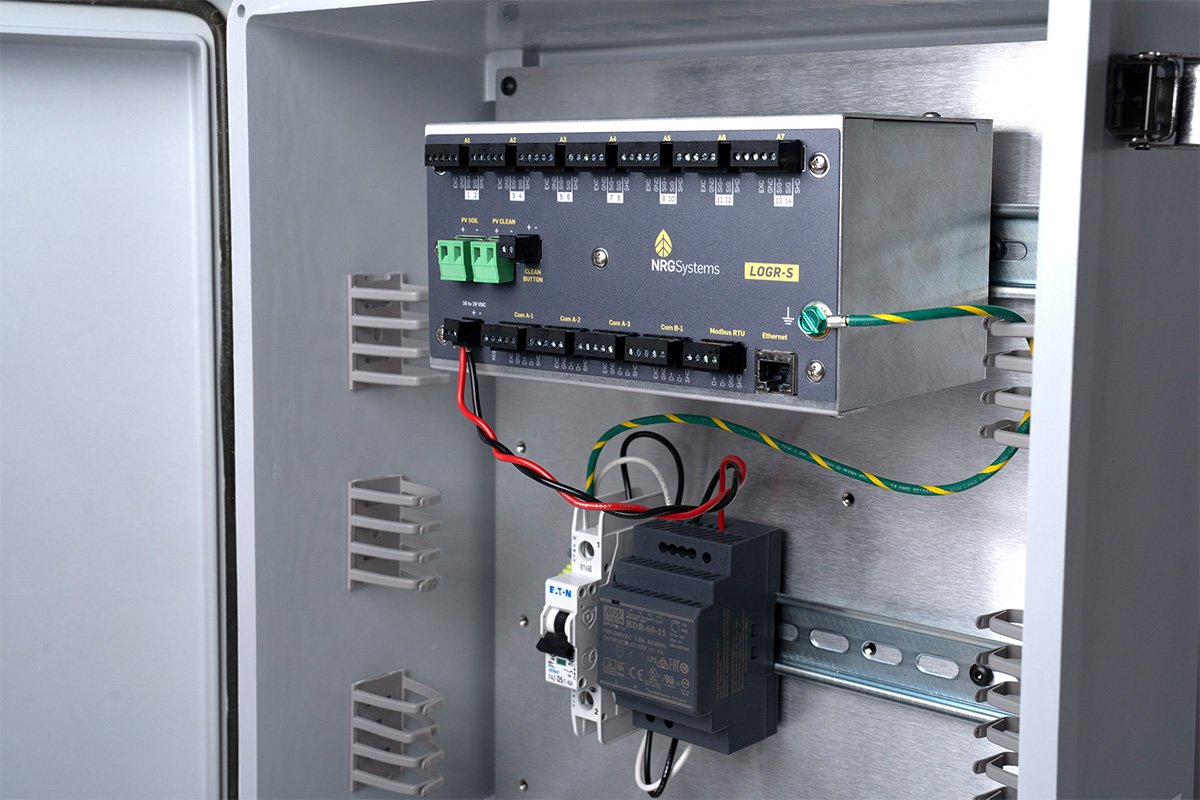

Sensor wiring	Integrated wiring panel featuring removable terminal blocks: • Seven (7) dedicated analog sensor wiring ports • Four (4) dedicated RS-485 sensor wiring ports • Two (2) dedicated PV input ports • Enclosure ground lug connects to earth ground with included ground cable
Expansion slots	Available module slots include: • MCU (processor) module • Analog module • PV input module • Counter module (coming soon)
Communication ports	• Ethernet port for web browser, FTP, Modbus TCP (server) • RS-485 port for Modbus RTU (server)
Power requirements
Batteries	Coin cell battery for clock backup
External power input	(16 to 28) VDC
External solar input	Contact NRG sales for accompanying backup power supply system options
External power output	• Constant 12 V source for powering analog sensors (50 mA per excitation port, 7 ports) • Constant 12 V source for powering modbus sensors (1000 mA shared by three COM-A ports and additional 1000mA to COM-B port)
Installation
Mounting	35 mm DIN Rail
Tools required	• Screwdriver for wiring input terminals (included) • LAN-connected computing device with Google Chrome web browser
Environmental
Operating temperature range	-40 °C to 65 °C (-40 °F to 149 °F)
Operating humidity range	• 0 to 100% relative humidity non-condensing • IP65 ingress protection with proper installation in NRG shelter box enclosure
Physical
Dimensions	(190.5 x 101.6 x 101.6) mm
Materials
Enclosure	Formed aluminum enclosure

Description

Instrument type: High utility data logger and real-time sensor interface
Applications: Solar resource monitoring

Data Collection

Sampling interval

1 Hz (IEC 61724-1 compliant)

Averaging interval

1-minute (IEC 61724-1 compliant)

Real time clock

Internal battery-backed with time synchronization

Storage medium

8 GB microSD

Maximum data storage

90 days (all data with maximum configuration)

Channel Capacity

• Fourteen (14) analog channels (single-ended); Seven (7) differential
• Twenty-four (24) serial channels via two (2) RS-485 communication ports
• Two (2) PV Input channels (soiling measurement)
• Ten (10) calculated channels plus dedicated soiling ratio calculation
• Counter channel support coming soon

Analog Channels Sensor Compatibility

Compatible with a wide array of sensors including:
• Standard analog sensors including NRG meteorological sensor suite (T60 Temperature, BP60 Barometric Pressure, RH5X Relative Humidity, etc.)
• Industry-standard pyranometers (Hukseflux SRxx series, EKO MS-xx series, Kipp & Zonen CMP series, etc.)
• 10K NTC Thermistor and RTD (PT100, PT1000) type temperature sensors

Analog Measurement Accuracy

Uncertainty (k=2):

450 µV @ (-10 to +10) V
61 µV @ (-1 to +1) V
8.5 µV @ (-70 to +70) mV

RS-485 Channels Sensor Compatibility

Supports configurable Modbus RTU data acquisition. Contact NRG to discuss support for additional model types or protocols.

Parameters recorded for each channel

• Average
• Standard deviation
• Minimum/Maximum 1-sec sample

Note: Statistics reported on each channel dependent on measurement type

Data delivery

• Real-time data delivery via Modbus registers (TCP via Ethernet or RTU via RS-485)
• Scheduled delivery of historical data via FTP
• On-demand transfer of historical data via internal web server to FTP

Security

Password-protected web server access

Resolution

Analog measurement resolution: 24-bit signed A/D conversion

Software

Type: • Onboard web server for logger configuration and administration
• Modbus Demo Client to test configured unit prior to connecting to SCADA

Configuration

User interface: • Web-based user interface via Ethernet connected computing device with Google Chrome browser
• Recessed reset button on front panel
• Audible beeper for user feedback

Connections

Sensor wiring: Integrated wiring panel featuring removable terminal blocks:
• Seven (7) dedicated analog sensor wiring ports
• Four (4) dedicated RS-485 sensor wiring ports
• Two (2) dedicated PV input ports
• Enclosure ground lug connects to earth ground with included ground cable
Expansion slots: Available module slots include:
• MCU (processor) module
• Analog module
• PV input module
• Counter module (coming soon)
Communication ports: • Ethernet port for web browser, FTP, Modbus TCP (server)
• RS-485 port for Modbus RTU (server)

Power requirements

Batteries: Coin cell battery for clock backup
External power input: (16 to 28) VDC
External solar input: Contact NRG sales for accompanying backup power supply system options
External power output: • Constant 12 V source for powering analog sensors (50 mA per excitation port, 7 ports)
• Constant 12 V source for powering modbus sensors (1000 mA shared by three COM-A ports and additional 1000mA to COM-B port)

Installation

Mounting: 35 mm DIN Rail
Tools required: • Screwdriver for wiring input terminals (included)
• LAN-connected computing device with Google Chrome web browser

Environmental

Operating temperature range: -40 °C to 65 °C (-40 °F to 149 °F)
Operating humidity range: • 0 to 100% relative humidity non-condensing
• IP65 ingress protection with proper installation in NRG shelter box enclosure

Physical

Dimensions: (190.5 x 101.6 x 101.6) mm

Materials

Enclosure: Formed aluminum enclosure

Product Support

Manuals (1)

Manuals

Manual: LOGR-S Data Logger

Download pdf (4.1 MB)

Firmware (1)

Firmware

LOGR-S Data Logger Firmware

Download V. 1.06.06

Webinars

Webinar: What's New in Solar at NRG Systems?

NRG Systems’ solar resource measurement solutions are designed to provide a truly turnkey experience. Everything from hardware to data services and field support can be acquired from a single source – us! To offer our customers end-to-end solutions in an ever-evolving market, we are continually evaluating and adjusting the products and services we provide. This webinar, led by our Manager of Product Management, Michael Fisher, touches on some of the latest solar developments here at NRG Systems.

Read More

Customer Service

+1 802-482-2255

Mon – Fri: 8:30am – 5:00pm Eastern Time (GMT-5)

LOGR-S Data Logger

Configuration Options

Details

Benefits

GET PRODUCT UPDATES

Brochures (2)

Manuals (1)

Firmware (1)

Quick Guide Videos (12)

Instruction Sheets (2)

Webinars (1)

Applications

Solar Resource Monitoring

Specifications Print Specs

Product Support

Manuals (1)

Manual: LOGR-S Data Logger

Firmware (1)

LOGR-S Data Logger Firmware

Quick Guide Videos (12)

LOGR-S | ADJUSTING LOCAL TIME OF LOGR-S

LOGR-S | CALCULATED CHANNEL - ALBEDO

LOGR-S | CALCULATED CHANNEL - AZIMUTH ANGLE

LOGR-S | CALCULATED CHANNEL - DNI

LOGR-S | CALCULATED CHANNEL - ZENITH ANGLE

LOGR-S | CONFIGURING A DIFFERENTIAL ANALOG SENSOR

LOGR-S | CONFIGURING A SERIAL SENSOR

LOGR-S | CONFIGURING SERIAL CHANNELS

LOGR-S | CONFIGURING SINGLE ENDED ANALOG SENSOR

LOGR-S | CONFIGURING SITE PROPERTIES

LOGR-S | SERIAL PORT SETUP

LOGR-S | UPDATING FIRMWARE

Instruction Sheets (2)

How to Install and Configure a LOGR-S UPS Shelter Box #16927 & #18365

Installing and Wiring LOGR-S UPS + PV Shelter Boxes and Auxiliary Battery Kits

Webinars (1)

Webinar: What's New in Solar at NRG Systems?
