Solar Mounting Booms
We offer a range of high-quality mounting booms designed for fast and precise installation of meteorological sensors at any height on a variety of tower types.
Every boom kit consists of three main components:
- Mounting hardware to secure the boom
- A robust boom arm
- A boom extension to mount your sensor of choice
There are four main categories of NRG mounting hardware:
Tubular Booms mount anemometers and wind vanes on NRG TallTowers. Our tubular booms come in a number of lengths, covering a wide range of measurement applications. Boom extensions are available to mount any NRG anemometer or NRG wind vane, as well as the WindSensor P2546-OPR Anemometer or Thies First Class Advanced Anemometer. The 2.4 m (95”) option is the standard boom used for wind resource assessment, and the 1.53 m (60.5”) boom is used to mount anemometers and wind vanes on our SRA System.
Lattice Booms mount anemometers and wind vanes on third-party lattice towers. Boom extensions are available to mount any NRG anemometer or NRG wind vane, as well as the WindSensor P2546-OPR or Thies First Class Advanced Anemometers. Lattice booms are available in 95” and 113” lengths and are compatible with lattice tower face widths of 18-24 ”.
Pyranometer Booms and Brackets mount solar irradiance sensors on NRG TallTowers, including the 2.2m Tower used in our SRA System.
Additional Mounting Hardware includes Boom Extensions, Hose Clamps, and U-Bolts. These items are included in the boom kits wherever they are needed, and they can also be purchased separately.
Tubular Booms
![Mounting Boom | 1.53m (60.5"), Tubular - Solar](/assets/images-accessories/NRG-Boom-Drawings-3390-Anemometer__FocusFillWyIwLjAwIiwiMC4wMCIsMzAwLDIwMF0.png)

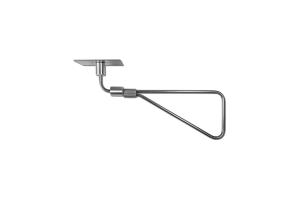

Mounting Boom | 1.53m (60.5"), Tubular - Solar
Mount your anemometers and wind vanes on NRG TallTowers™.
Pyranometer Booms + Brackets
![Mounting Boom | 1.2M (48") Tubular, Solar](/assets/images-accessories/NRG-Solar-Mount-Illustrations-14443__FocusFillWyIwLjAwIiwiMC4wMCIsMzAwLDIwMF0.png)
Mounting Boom | 1.2M (48") Tubular, Solar
This tubular mounting boom provides a versatile, stable base upon which to mount solar radiation sensors.
![Mounting Plate | Pyranometer, Gen II](/assets/images-accessories/14357__FocusFillWyIwLjAwIiwiMC4wMCIsMzAwLDIwMF0.png)
Mounting Plate | Pyranometer, Gen II
Secure the latest industry-standard pyranometers to our tubular solar mounting booms using this simple yet effective mounting plate.
![Mounting Plate | Pyranometer, Gen I](/assets/images-accessories/NRG-Solar-Mount-Illustrations2-14502-Mouting-Plate-Pyro-Gen-I__FocusFillWyIwLjAwIiwiMC4wMCIsMzAwLDIwMF0.png)
Mounting Plate | Pyranometer, Gen I
Secure a wide variety of industry-standard pyranometers to our tubular solar mounting booms using this simple yet effective mounting plate.
![POA Bracket | Pyranometer, Square TT + Round TT, Isolated](/assets/images-accessories/NRG_POA_Bracket_16073_1__FocusFillWyIwLjAwIiwiMC4wMCIsMzAwLDIwMF0.png)
POA Bracket | Pyranometer, Square TT + Round TT, Isolated
Simplify the installation of your chosen pyranometer in a plane-of-array position on square and round torque tubes for tracked arrays with this bracket.
![POA Bracket | Pyranometer + Reference Cell, Square TT + Round TT, Isolated](/assets/images-accessories/NRG_POA_Bracket_17830_1__FocusFillWyIwLjAwIiwiMC4wMCIsMzAwLDIwMF0.png)
POA Bracket | Pyranometer + Reference Cell, Square TT + Round TT, Isolated
Simplify the installation of your chosen pyranometer and reference cell sensor in a plane-of-array position on square and round torque tubes for tracked arrays with this bracket.
![POA Bracket | Pyranometer, Dual, Square TT + Round TT, Isolated](/assets/images-accessories/NRG_POA_Bracket_16884_1__FocusFillWyIwLjAwIiwiMC4wMCIsMzAwLDIwMF0.png)

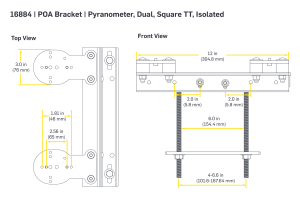

POA Bracket | Pyranometer, Dual, Square TT + Round TT, Isolated
Simplify the installation of two of your chosen pyranometers in a plane-of-array position on square and round torque tubes for tracked arrays with this bracket.
![POA Bracket | Pyranometer, Extension Arm, Isolated](/assets/images-accessories/NRG_POA_Bracket_17560_1__FocusFillWyIwLjAwIiwiMC4wMCIsMzAwLDIwMF0.png)
POA Bracket | Pyranometer, Extension Arm, Isolated
This bracket with extension arm simplifies the installation of your chosen pyranometer in a plane-of-array position on square and round torque tubes for tracked arrays, and allows the flexibility to easily place the pyranometer in an optimal position.
![POA Bracket | Pyranometer, Fixed Array, Isolated](/assets/images-accessories/NRG_POA_Bracket_14983_1__FocusFillWyIwLjAwIiwiMC4wMCIsMzAwLDIwMF0.png)
POA Bracket | Pyranometer, Fixed Array, Isolated
Simplify the installation of your chosen pyranometer in a plane-of-array position on fixed arrays with this bracket.
Mounting Hardware
![Boom Extensions - Solar](/assets/images-accessories/windsensor-adapter-boom__FocusFillWyIwLjAwIiwiMC4wMCIsMzAwLDIwMF0.jpg)
Boom Extensions - Solar
Extend and retrofit NRG booms to meet your project’s needs with our boom extensions and adapter kits.
![Hose Clamps - Solar](/assets/images-accessories/hose-clamp__FocusFillWyIwLjAwIiwiMC4wMCIsMzAwLDIwMF0.jpg)
Hose Clamps - Solar
Secure mounting booms to NRG TallTowers™ with hose clamps sized specifically for your tower tube.
