Power Cable Kit - IceFree3 Sensor 3C
These cables provide the power for the heating element in our IceFree3 Heated Vanes and come in a variety of lengths.
Details

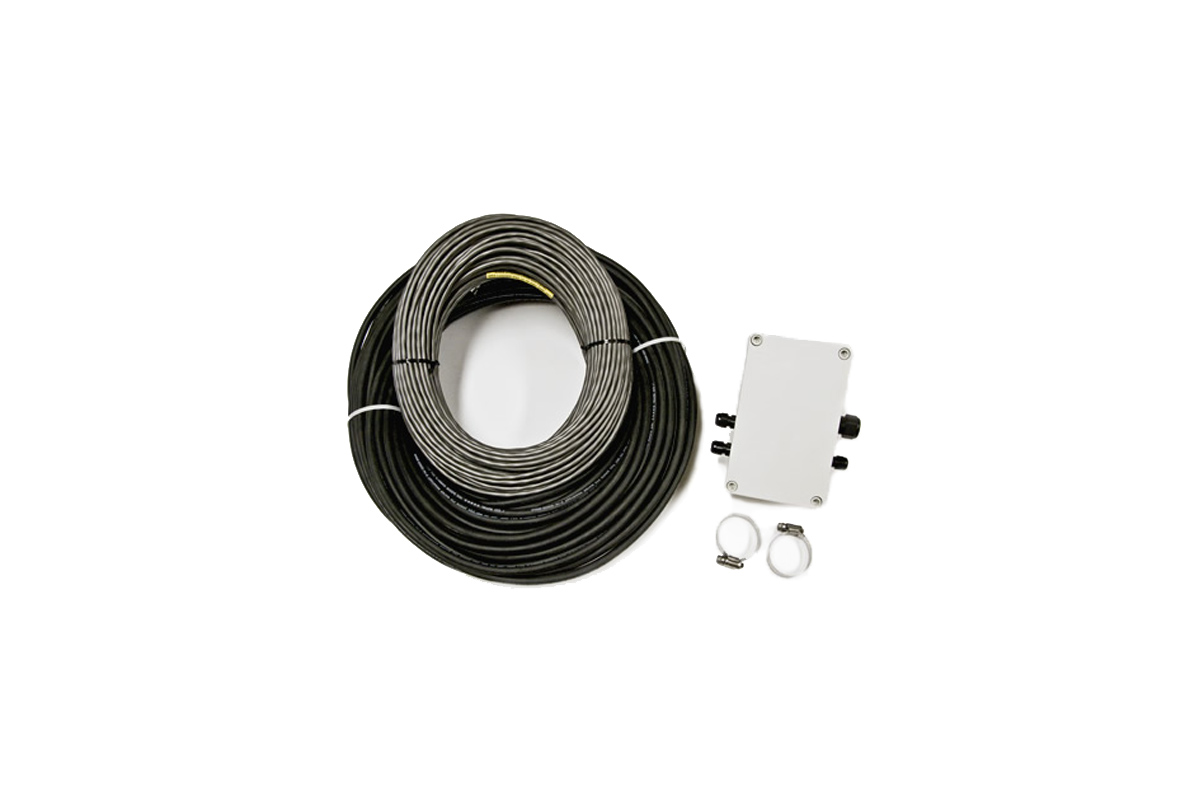

This kit provides a junction box and cabling to extend the standard power and signal cables included with the NRG IceFree3 Heated Vane.
Our pre-measured sensor cables come in various lengths for easy installation specific to your tower configuration. NRG sensor cables utilize shielded cable with drain wire and soldered terminal connectors for secure, reliable delivery of your meteorological data.
All NRG accessories are covered by our two-year warranty and lifetime technical support.
Sensor Cable Description | |
Application | Wiring RNRG Wind Vanes to RNRG data loggers |
Sensor Compatibility | IceFree3 Heated Wind Direction Vane |
Cable Type | 3 conductor, 20 AWG, Shielded |
Sensor Cable Physical | |
Connections |
|
Dimensions | Various lengths are available |
Sensor Cable Material | |
Shield | Foil with drain wire |
Jacket | Gray UV stabilized PVC jacket |
Power Cable Description | |
Application | Used with junction box to provide power to IceFree3 Heated Wind Direction Vanes |
Sensor Compatibility | IceFree3 Heated Wind Direction Vane |
Cable Type | Power cable, 3 conductor, 14 AWG, Copper, Black, SJOOW |
Power Cable Physical | |
Dimensions | Nom. O.D. 0.365", various lengths are available |
Weight | 4.8kg (10.5 lbs) per 30.5m (100 ft) |
Power Cable Material | |
Jacket | Black Neoprene |
Benefits
- 20-gauge signal cables are designed for use in a wide range of temperature and environmental conditions
- Cable shielding protects against electronic interference, is water resistant, and UL certified for indoor or outdoor use
- Cable terminals feature weather-tight cable grips
- Junction box is made of UV-resistant PVC plastic
Specifications
Please call us at +1 802-482-2255 for specifications.
