Power Cable Kit - IceFree3 Sensor 2C + 3C

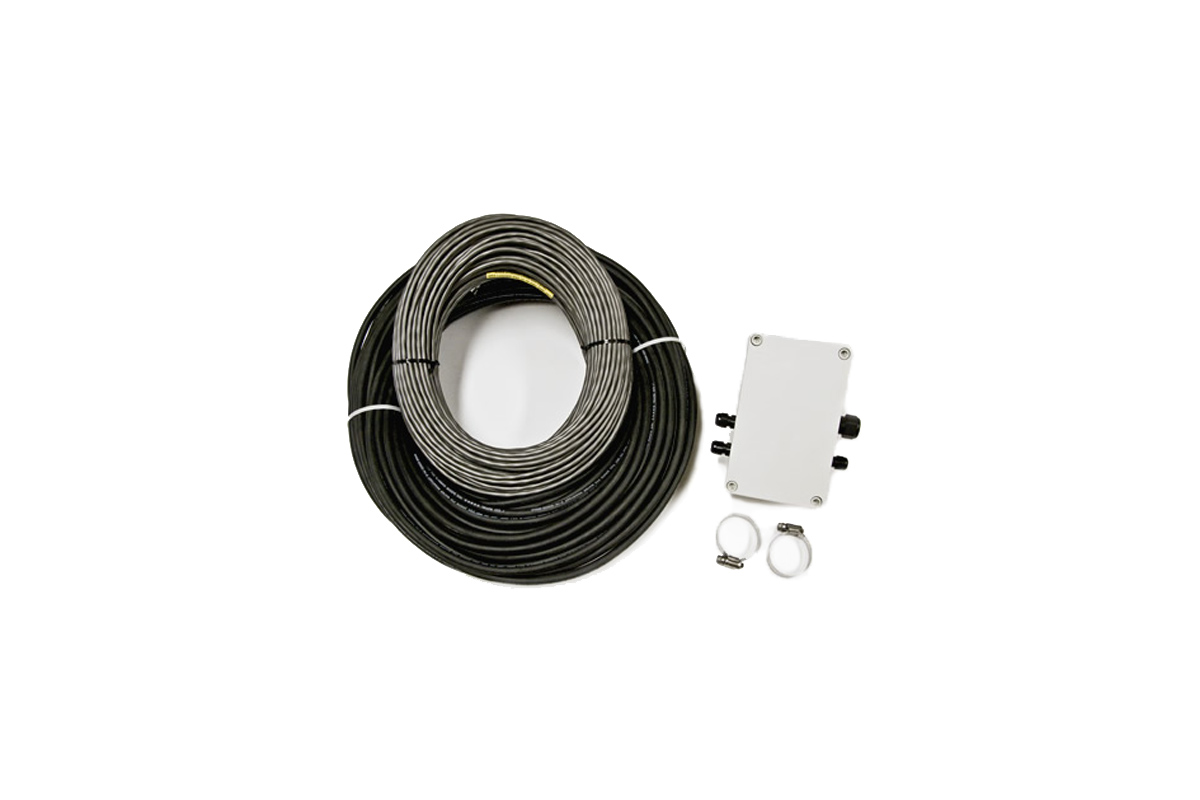

This kit provides a junction box and cabling to extend the standard power and signal cables included with the IceFree3 Anemometer and the IceFree3 Vane.

  • Power Cable Kit - IceFree3 Sensor 2C + 3C

Configuration Options

These kits include power cables in addition to signal cables for use with our NRG IceFree3 Heated Anemometer and NRG IceFree3 Heated Vane.

Our pre-measured sensor cables come in various lengths for installation specific to your tower configuration. Shielded cable with drain wire and soldered terminal connectors ensure secure, reliable delivery of your meteorological data.

All NRG accessories are covered by our two-year warranty and lifetime technical support.



2C Sensor Cable Description
Application Wiring IceFree3 Heated Anemometers to RNRG data loggers
Sensor Compatibility IceFree3 Heated Anemometers
Cable Type 2 conductor, 20 AWG, Shielded
2C Sensor Cable Physical
Connections
  • Sensor end connects to junction box terminals
  • Logger end terminates in wires pre-stripped and tinned (RoHS)
Dimensions Various lengths available
2C Sensor Cable Material
Shield Foil with drain wire
Jacket Gray UV stabilized PVC
3C Sensor Cable Description
Application Wiring IceFree3 Heated Wind Direction Vanes to RNRG data loggers
Sensor Compatibility IceFree3 Heated Wind Direction Vane
Cable Type 3 conductor, 20 AWG, Shielded
3C Sensor Cable Physical
Connections
  • Sensor end connects to junction box terminals
  • Logger end wires pre-stripped and tinned (RoHS)
Dimensions Various lengths available
3C Sensor Cable Material
Shield Foil with drain wire
Jacket Gray UV stabilized PVC jacket
Power Cable Description
Application Used with junction box to provide power to IceFree3 Heated Anemometers and Wind Direction Vanes
Sensor Compatibility IceFree3 Heated Anemometers and Wind Direction Vanes
Cable Type Power cable, 3 conductor, 14 AWG, Copper, Black, SJOOW
Power Cable Physical
Dimensions Nom. O.D. 9.3mm (0.365"), various lengths available
Weight 4.8kg (10.5 lbs) per 30.5m (100 ft)
Power Cable Material
Jacket Black Neoprene
  • 20-gauge signal cables are designed for use in a wide range of temperature and environmental conditions
  • Cable shielding protects against electronic interference, is water resistant, and UL certified for indoor or outdoor use
  • Cable terminals feature weather-tight cable grips
  • Junction box is made of UV-resistant PVC plastic
  • 10 m signal cables for one IceFree3 Anemometer and one IceFree3 Vane
  • 10 m power cable
  • Junction box with mounting hardware

Please call us at +1 802-482-2255 for specifications.
