Interface #40 to Voltage, #SI5100
Interface the 40C Anemometer with an analog device such as a computer, meter, or recorder.
Details
The SI5100 wind speed interface module is used for interfacing the NRG 40C Anemometer to an analog device such as a computer, meter, or recorder.
The module output signal is a negative ground voltage set at 0 to 5 VDC at wind speeds ranging from 0 to 44.7 m/s (0 to 100 mph).

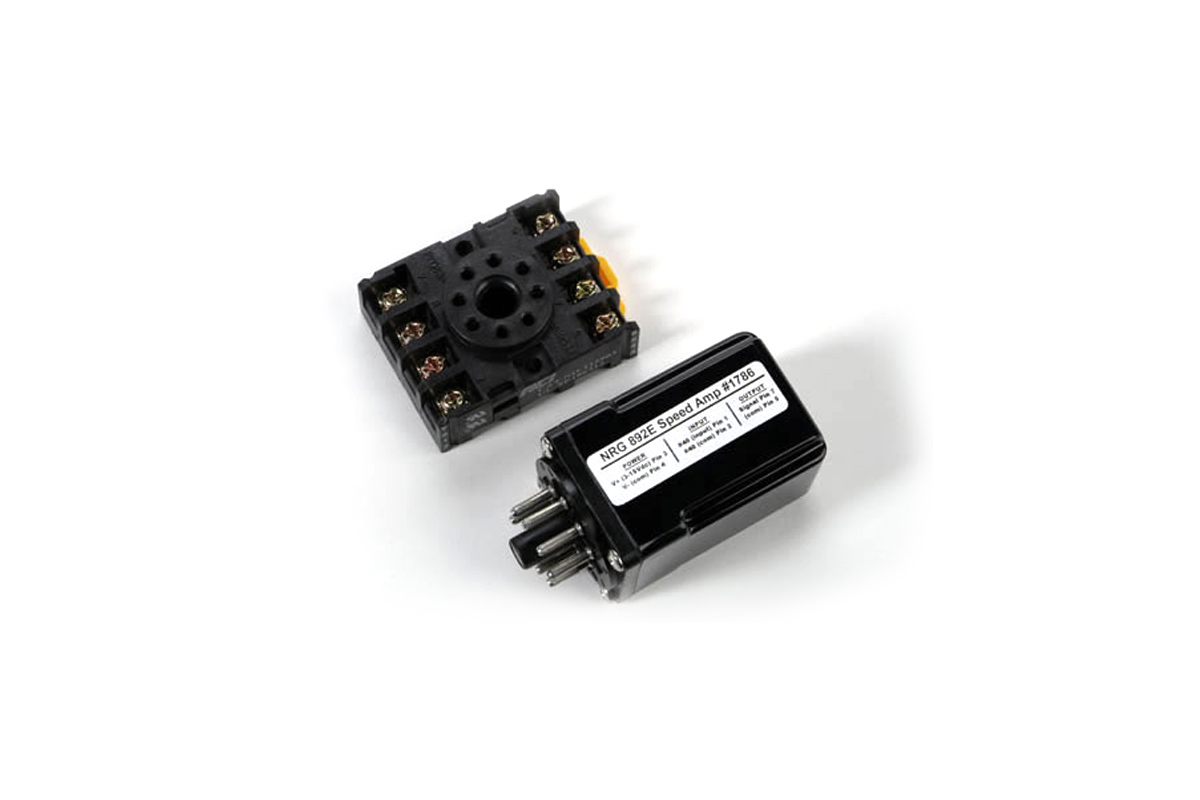

Power is supplied by any 12 VDC source. The SI5100 is packaged in a plastic case with an octal plug. A DIN-rail mountable octal socket with screw terminals is included.
Specifications Print Specs
| INTERFACE 40C TO VOLTAGE, #SI5100 (#2062) | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | |||||||||||||||||||
| Sensor type |
|
||||||||||||||||||
| Applications |
|
||||||||||||||||||
| Sensor range | 0 m/s to 44.7 m/s (0 mph to 100 mph) | ||||||||||||||||||
| Sensor compatibility |
|
||||||||||||||||||
| Input signal | |||||||||||||||||||
| Signal type (sensor output) | low level AC sine wave compatible with NRG #40 Maximum Anemometer | ||||||||||||||||||
| Signal range (sensor output) |
|
||||||||||||||||||
| Output signal | |||||||||||||||||||
| Signal type | DC voltage proportional to wind speed | ||||||||||||||||||
| Transfer function |
|
||||||||||||||||||
| Accuracy | +/- 0.447 m/s (+/- 1 mph) | ||||||||||||||||||
| Electrical time constant | typical response time 0.5 seconds | ||||||||||||||||||
| Recommended load resistance | 200 Ω minimum (25 mA max output current) | ||||||||||||||||||
| Output signal range | 0 V DC to 5 V DC for 0 m/s to 44.7 m/s (0 mph to 100 mph) | ||||||||||||||||||
| Power requirements | |||||||||||||||||||
| Supply voltage | 12 V DC to 15 V DC | ||||||||||||||||||
| Supply current | 8 mA to 13 mA (0.1 W to 0.2 W), no load on output | ||||||||||||||||||
| Installation | |||||||||||||||||||
| Mounting | mating socket mounts to 35mm (type O) DIN rail or with screws to any flat surface | ||||||||||||||||||
| Tools required | #1 Phillips (+) or flat blade (-) screwdriver for terminals | ||||||||||||||||||
| Accessories | NRG #40 Maximum Anemometer, Item No. 1899 | ||||||||||||||||||
| Wiring |
|
||||||||||||||||||
| Environmental | |||||||||||||||||||
| Operating temperature range | -40 °C to 70 °C (-40 °F to 150 °F) | ||||||||||||||||||
| Operating humidity range | 0 % to 95 % RH (non condensing) | ||||||||||||||||||
| Physical | |||||||||||||||||||
| Connections | octal plug, mating socket with screw terminals included | ||||||||||||||||||
| Weight | 75 g (0.17 pounds) including socket | ||||||||||||||||||
| Dimensions |
|
||||||||||||||||||
| Materials | |||||||||||||||||||
| Enclosure | plastic housing with octal plug base | ||||||||||||||||||
| Terminals | octal plug, mating socket with screw terminals included | ||||||||||||||||||
Description
- Sensor type
-
- anemometer interface, voltage output
- Converts the low level AC sine-wave signal from the sensor to a DC voltage.
- Applications
-
- wind turbine control
- process control
- environmental monitoring
- meteorological studies
- Sensor range
- 0 m/s to 44.7 m/s (0 mph to 100 mph)
- Sensor compatibility
-
- NRG #40 anemometer
- consult NRG for other sensors
Input signal
- Signal type (sensor output)
- low level AC sine wave compatible with NRG #40 Maximum Anemometer
- Signal range (sensor output)
-
- 0 Hz to 58 Hz, equivalent to 0 m/s to 44.7 m/s (0 mph to 100 mph)
- 80 mV peak-to-peak minimum input signal
Output signal
- Signal type
- DC voltage proportional to wind speed
- Transfer function
-
- scale factor = 0.086 V per Hz
- m/s = 8.94 x Vout
- mph = 20 x Vout
- Accuracy
- +/- 0.447 m/s (+/- 1 mph)
- Electrical time constant
- typical response time 0.5 seconds
- Recommended load resistance
- 200 Ω minimum (25 mA max output current)
- Output signal range
- 0 V DC to 5 V DC for 0 m/s to 44.7 m/s (0 mph to 100 mph)
Power requirements
- Supply voltage
- 12 V DC to 15 V DC
- Supply current
- 8 mA to 13 mA (0.1 W to 0.2 W), no load on output
Installation
- Mounting
- mating socket mounts to 35mm (type O) DIN rail or with screws to any flat surface
- Tools required
- #1 Phillips (+) or flat blade (-) screwdriver for terminals
- Accessories
- NRG #40 Maximum Anemometer, Item No. 1899
- Wiring
-
Octal Socket Terminal Connection #1 wind speed input (+) #2 wind speed input (-) #3 DC voltage supply (+) #4 DC voltage supply (-) #5 output signal (-) #6 output signal (+) #7 no connection #8 no connection
Environmental
- Operating temperature range
- -40 °C to 70 °C (-40 °F to 150 °F)
- Operating humidity range
- 0 % to 95 % RH (non condensing)
Physical
- Connections
- octal plug, mating socket with screw terminals included
- Weight
- 75 g (0.17 pounds) including socket
- Dimensions
-
- module: 50 mm x 50 mm x 69 mm (1.4 inches x 1.4 inches x 2.7 inches), including plug
- in socket: 41 mm x 56 mm x 77 mm (1.6 inches x 2.2 inches x 3.0 inches)
Materials
- Enclosure
- plastic housing with octal plug base
- Terminals
- octal plug, mating socket with screw terminals included
