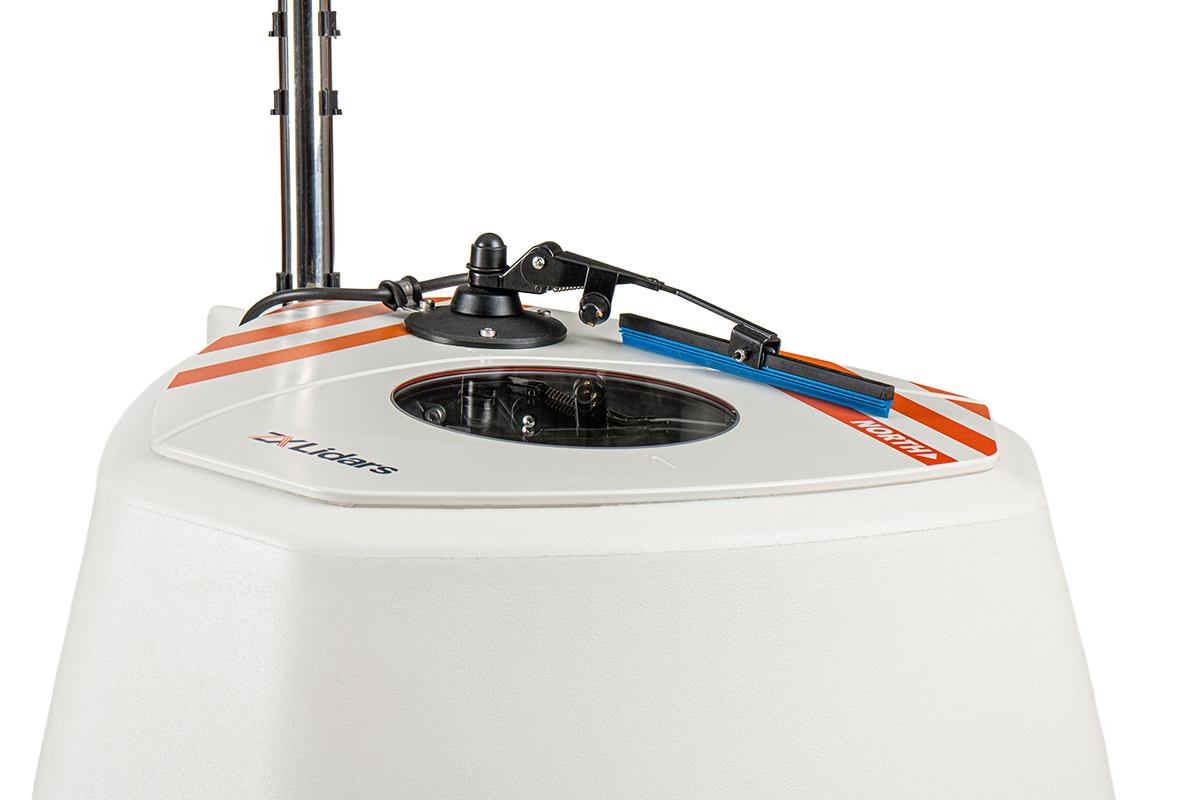

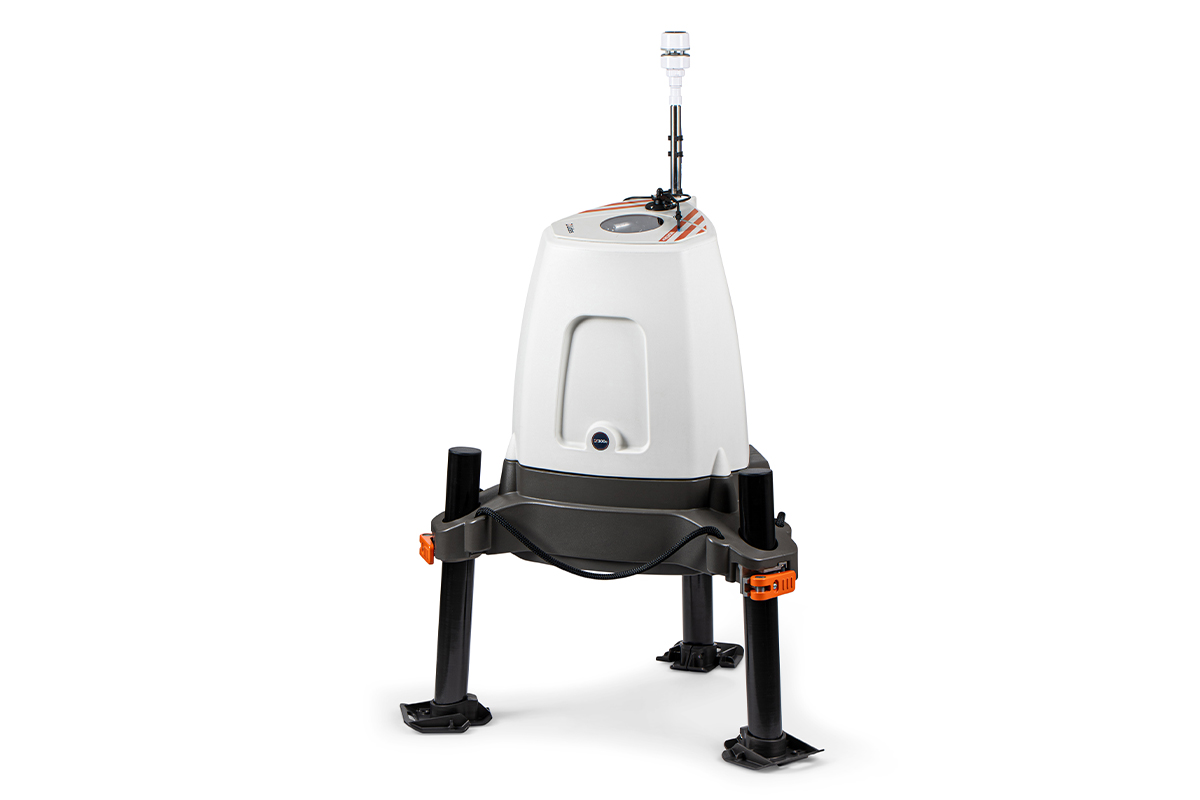

ZX 300 Wind Lidar

ZX 300 is a fully IEC Classified onshore vertical profiling Lidar with finance-grade data accepted by DNV GL.

  • ZX 300 Wind Lidar
  • Thumbnail for ZX 300 Wind Lidar
  • Thumbnail for
  • Thumbnail for

Configuration Options

 ZX 300 offers full IEC classification and is accepted by DNV GL as a Stage 3 Bankable Lidar. The vertical profiling Lidar is easy to deploy and captures onshore wind measurements from 10 to 200+ meters.

ZX 300 collects quality controlled, 1-second data in real time and features a user-friendly interface that ensures straightforward navigation and configuring.

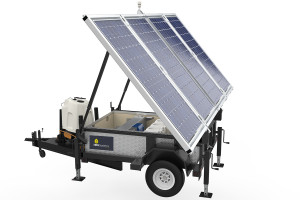

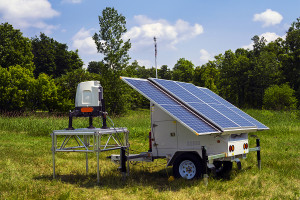

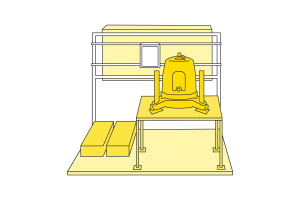

ZX 300 is a mature, complete remote sensing solution, backed by a 3-year warranty and service interval, NRG's technical support, remote power supplies, and integrated services, for seamless installation and operation.

*NRG Systems also offers and supports ZX 300M for near-shore or platform-based offshore applications. ZX 300M captures finance-grade wind measurements from 10 to 200+ meters and is fully IEC classified and accepted by DNV GL as a Stage 3 Bankable Lidar.



  • Fully IEC Classified to IEC 61400-12-1: 2017
  • Accepted by DNV GL as a Stage 3 Bankable Lidar
  • 3-year warranty and service interval
  • Reduced measurement uncertainty
  • Requires little to no site preparation and no planning permits
  • Performance verification against Golden Lidar
  ZX 300 Vertical Profiler (#12869) ZX 300M Vertical Profiler (#14129)
Measurement Specifications
Wind Speed(WS) Accuracy ± 0.1 m/s ± 0.1 m/s
WS Range < 1 m/s to 80 m/s < 1 m/s to 80 m/s
System Geometry
Probe Length
  • ± 0.07m @ 10m
  • ± 7.70m @ 100m
  • ± 0.07m @ 10m
  • ± 7.70m @ 100m
Measurement Height Range
  • 10 - 200m (Lidar measurement)
  • 0 - 10m (onboard met weather station)
  • 10 - 200m (Lidar measurement)
  • 0 - 10m (onboard met weather station)
Number of Range Gates
  • 10 Lidar measurement heights
  • 1 additional met weather station measurement
  • 10 Lidar measurement heights
  • 1 additional met weather station measurement
Range Gate Heights Configurable Configurable
Hardware Specifications
Warranty
  • 3 years standard warranty
  • Extended warranties available
  • 3 years standard warranty
  • Extended warranties available
System Interval 36 months from new 36 months from new
Routine Maintenance No annual maintenance or calibration within service interval No annual maintenance or calibration within service interval
Dimensions 900mm x 900mm x 1,001mm (35.4" x 35.4" x 39.4") 900mm x 900mm x 1,001mm (35.4" x 35.4" x 39.4")
Weight 55kg 55kg

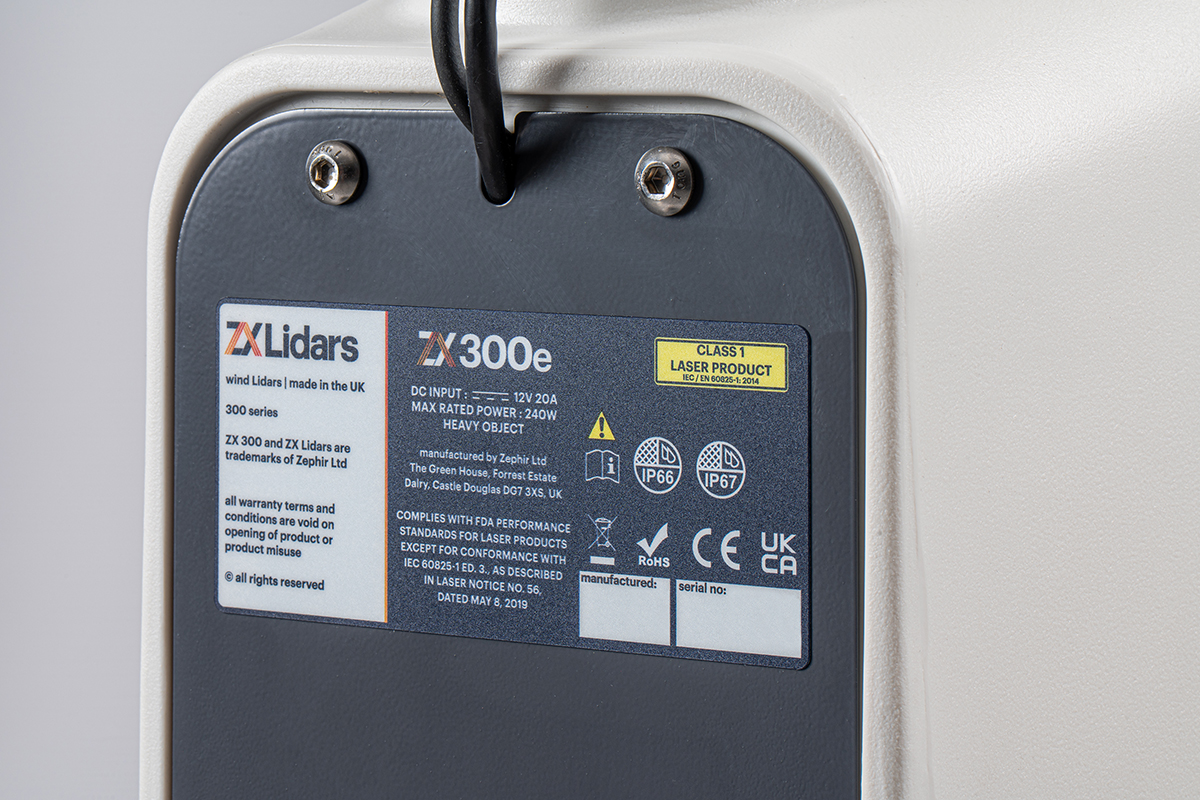

Electrical Specifications
Power Consumption 69W 69W
Supply Voltage 12V 12V
Data Specifications
Data Sampling Rate 50 Hz (up to 50 measurement points every second) 50 Hz (up to 50 measurement points every second)
Averaging Interval
  • True 1-second averaging
  • 10 minute averaging
  • True 1-second averaging
  • 10 minute averaging
Environmental Specifications
Operating Temp Range -40 to 50°C -40 to 50°C
Ingress Protection IP67 IP67
