60m XHD TallTower™

Obtain high quality measurements with the wind industry's first choice for long-term, professional wind energy studies.

  • 60m XHD TallTower™
  • Thumbnail for 60m XHD TallTower™
  • Thumbnail for
  • Video #2
  • Thumbnail for
  • Thumbnail for
  • Thumbnail for
  • Thumbnail for
  • Thumbnail for

60m XHD TallTower | No Paint, Anchors

#4042

Request Quote

60m XHD TallTower | Paint, Anchors

#4054

Request Quote

The 60m XHD TallTower is a highly versatile meteorological tower designed specifically for wind resource assessment. Ice-rated for cold climates, this tower exceeds EIA-222-F standards.

We engineered the 60m XHD TallTower based on decades of experience in creating and manufacturing tilt-up towers for the global wind energy industry. NRG towers are built strong for durability and extreme weather survival. Designed for efficient delivery and installation around the globe, our towers are ready to ship days after your order is placed. We offer free surface shipping to any destination within the contiguous United States, as well as most major ports worldwide.

FAA-compliant industrial paint, guy guards, marker balls, and obstruction lighting and monitoring systems are available to ensure that your tower complies with visibility requirements. Please review your local regulations and contact our sales team to discuss which option would be best for your location.

The Install Kit | 60m HD, 50m XHD, 60m XHD TallTowers™, which includes a ginpole and winch, is sold separately and required for installation.

  • Strong steel tube construction
  • Compact Envirocrate™ packaging for ease of transport and assembly with minimal waste on site
  • Reinforced steel base plate—no concrete foundation required
  • Optional FAA-compliant industrial painting

"KB Energy has installed over 800 NRG Systems towers in the last 15 years. We have never seen a meteorological tower survive the tornado wind speeds of 165+ mph that the 60m XHD withstood when Laramie, WY, was hit with a tornado on May 22, 2008."

Keith Broyles KB Energy Co.
  • Rugged tilt-up tower
  • Guy wires
  • Bright yellow guy wire guards
  • Screw-in anchors
  • Grounding kit
  • All necessary hardware components for tower assembly
  60m XHD TallTower | No Paint, Anchors (#4042) 60m XHD TallTower | Paint, Anchors (#4054)
Installation
Tools required See manual available in the Documents + Downloads tab:
50m XHD and 60m XHD TallTower Installation
See manual available in the Documents + Downloads tab:
50m XHD and 60m XHD TallTower Installation
Winch required 4254 - Winch | 7000 lb. - 50m XHD, 60m XHD Towers 4254 - Winch | 7000 lb. - 50m XHD, 60m XHD Towers
Ginpole required 3930 - Ginpole | 60m HD, 50m XHD, 60m XHD Towers 3930 - Ginpole | 60m HD, 50m XHD, 60m XHD Towers
Physical
Erected height 60.26 m (197 feet 8-1/4 inches) 60.26 m (197 feet 8-1/4 inches)
Tube diameter 203 mm (8 inches) and 254 mm (10 inches) 203 mm (8 inches) and 254 mm (10 inches)
Footprint Choice of three pre-engineered footprints:
  • Standard: uses 3 anchor radii, largest = 50 m (164 feet)
  • Small: uses 2 anchor radii, largest = 33.5 m (110 feet)
  • Single: uses 1 anchor radii at 40 m (131 feet 2 inches)
Choice of three pre-engineered footprints:
  • Standard: uses 3 anchor radii, largest = 50 m (164 feet)
  • Small: uses 2 anchor radii, largest = 33.5 m (110 feet)
  • Single: uses 1 anchor radii at 40 m (131 feet 2 inches)
Guyset levels
  • 11.8 m (38 feet 7 inches)
  • 23.1 m (75 feet 10 inches)
  • 30.9 m (101 feet 5 inches)
  • 38.7 m (127 feet 1 inch)
  • 46.6 m (152 feet 9 inches)
  • 56.4 m (184 feet 10 inches)
  • 11.8 m (38 feet 7 inches)
  • 23.1 m (75 feet 10 inches)
  • 30.9 m (101 feet 5 inches)
  • 38.7 m (127 feet 1 inch)
  • 46.6 m (152 feet 9 inches)
  • 56.4 m (184 feet 10 inches)
Tube length(s) 2.21 m (87 inches) maximum 2.21 m (87 inches) maximum
Materials
Tube Galvanized steel Galvanized steel
Guy wires 6.35 mm (1/4 inch) 7x19 galvanized aircraft cable (stainless option available) 6.35 mm (1/4 inch) 7x19 galvanized aircraft cable (stainless option available)
Guy rings Galvanized steel Galvanized steel
Anchors Screw-in, 152 mm (6 inch) diameter, 1.7 m (66 inches) long galvanized steel (other anchor types sold separately) Screw-in, 152 mm (6 inch) diameter, 1.7 m (66 inches) long galvanized steel (other anchor types sold separately)
Baseplate Galvanized steel Galvanized steel
Wire rope clips 6.35 mm (1/4 inch) galvanized steel (stainless option available) 6.35 mm (1/4 inch) galvanized steel (stainless option available)
Structural
Wind and Ice Loading capabilities See manual available in the Dcouments + Downloads tab:
50m XHD and 60m XHD TallTower Installation
See manual available in the Dcouments + Downloads tab:
50m XHD and 60m XHD TallTower Installation
Safety features
Obstruction marking None Painted towers meet the requirements of FAA AC 70/7460-1K. The paint color used for obstruction marking complies with Federal Standard FED-STD-595 and passes ASTM D3359 Standard Test Methods for Measuring Adhesion by Tape Test.
Anchor - Rock

Anchor - Rock

Use these anchors to secure TallTowers in solid rock.

Cable Ball Set

Cable Ball Set

Improve the visibility of your met tower with durable cable balls.

Grounding Kit

Grounding Kit

Protect your sensors and loggers from electrostatic discharge with a purpose-built grounding kit.

Guy Wire Guards

Guy Wire Guards

Mark and protect your TallTower™ guy wires with high visibility guards.

Install Kit | 60m HD, 50m XHD, 60m XHD TallTowers™

Install Kit | 60m HD, 50m XHD, 60m XHD TallTowers™

Use this tool kit for the installation of 60m HD, 50m XHD, and 60m XHD TallTowers.

Anchor - Screw-In

Anchor - Screw-In

Use these anchors to secure NRG TallTowers in normal clay soil without many rocks.

Winch with HPU | 60m XHD Towers

Winch with HPU | 60m XHD Towers

Reliably install 50m XHD and 60m XHD TallTowers™ with this hydraulic winch.

Guy Wire Replacement Kit | 60m XHD Tower

Guy Wire Replacement Kit | 60m XHD Tower

Guy wires must be replaced each time your TallTowers™ are redeployed. Be confident that you have the equipment you need for your upcoming campaign with our 60m Guy Wire Replacement Kit.

Anchor - Arrowhead

Anchor - Arrowhead

Use these anchors to secure TallTowers in rocky soil.

Tool Kit | 50m XHD, 60m XHD TallTowers™

Tool Kit | 50m XHD, 60m XHD TallTowers™

This tool kit is specifically designed for use with NRG 50m XHD and 60m XHD TallTowers.

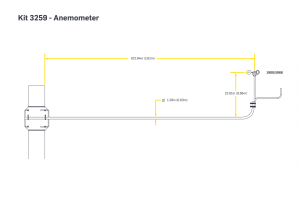

Mounting Boom | 1.53m (60.5"), Tubular
