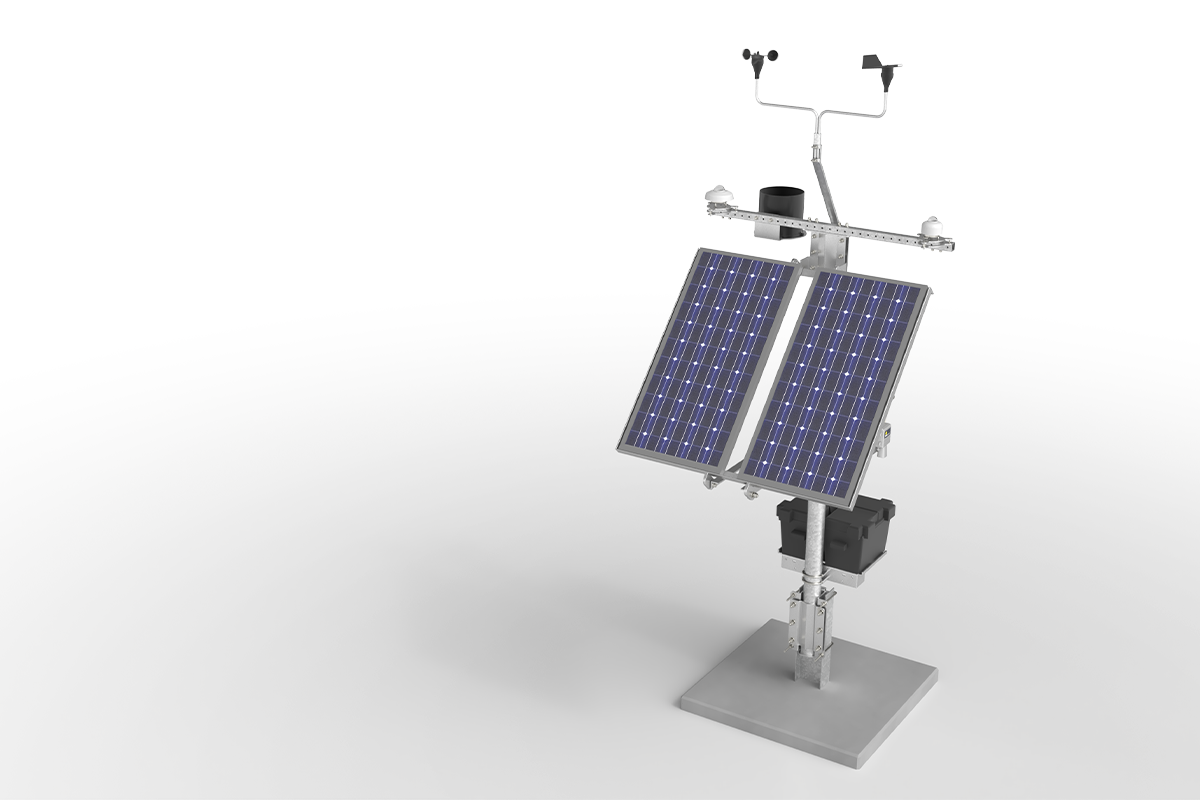

Flare SRM System

Monitor the performance of your utility-scale solar PV project with our Flare SRM System.

  • Flare SRM System
  • Thumbnail for Flare SRM System
  • Video #1
  • Thumbnail for
  • Thumbnail for
  • Thumbnail for
  • Thumbnail for

Configuration Options

Whether tracking or fixed, mono- or bifacial, 1 MW or 1 GW, NRG is focused on delivering repeatable solar resource measurements across your fleet of projects. From prompt and accurate project bidding support to post-installation training of O&M staff, NRG’s solar solutions span beyond our purpose-built and easy-to-use hardware products. We will tailor the measurement configuration to suit your needs and once finalized, NRG’s lean manufacturing operations excel at producing a consistent, standardized result, project after project.

Anchoring these solutions is our Flare SRM System – a turnkey measurement station for performance monitoring of utility-scale PV projects per IEC 61724-1:2021. Sharing many foundational components with our Flare SRA System, NRG’s approach to SRM involves a thoughtfully designed and integrated system of both original equipment and third-party products and services. The result is a system that delivers accurate, site-specific data including all relevant meteorological and environmental conditions: solar irradiance, module temperature, soiling conditions, and more. Our Flare SRM System is available as a standalone, tower-mounted meteorological station or an array-mounted solution.

NRG Systems works with a network of solar professionals to offer a turnkey experience for solar developers. This includes support with the design, manufacture, shipping, installation, and operation of solar resource measurement systems, including the delivery of independent campaign monitoring and finance-grade resource assessment reports.

  • NRG’s lean manufacturing and global supply chain capabilities enable professional, repeatable measurement results across your fleet of projects
  • Integrated system approach translates to simplified procurement, shorter lead times, and more efficient installations and O&M services
  • Backed by global Technical Services Partner Network
  • Technically sophisticated yet easy to use, this system reliably delivers accurate data to the local SCADA network via Modbus TCP or to NRG Cloud via 4G cellular connectivity

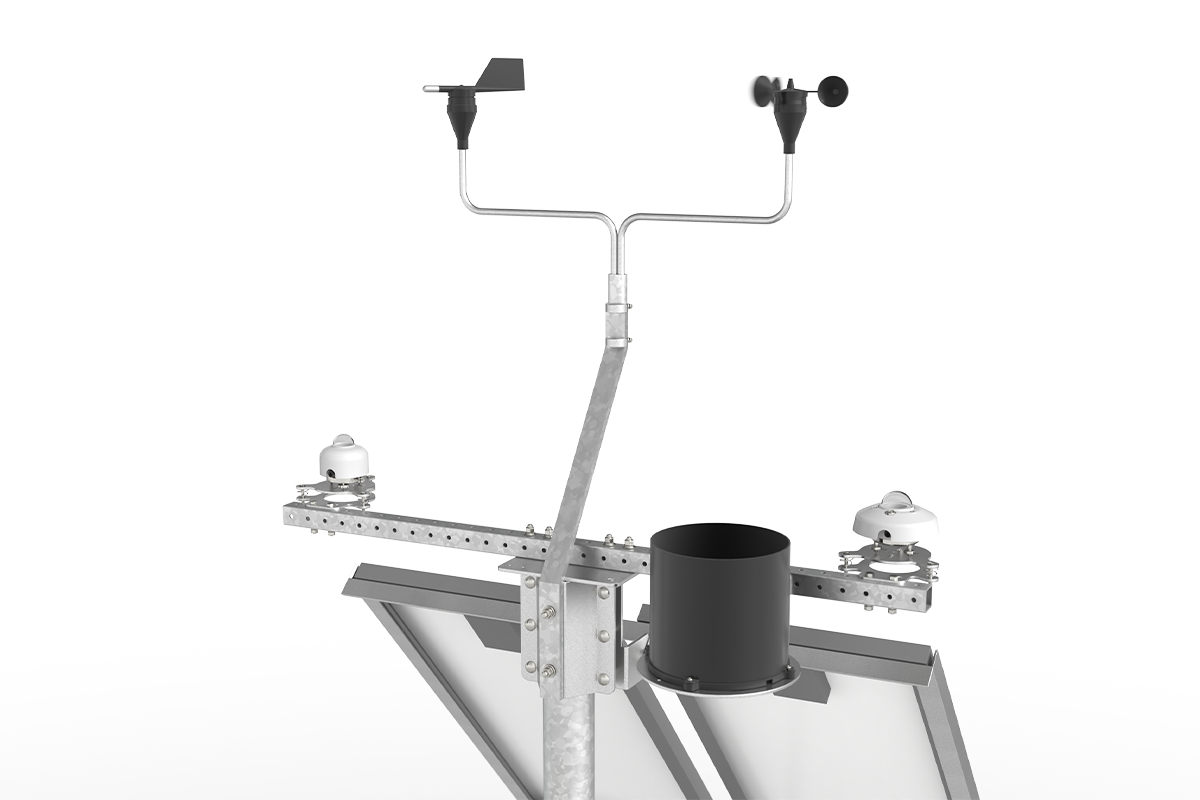

Tower Configuration

  • NRG Data Logger | Modbus TCP (Ethernet or Fiber)
  • Uninterupptible Power Supply (scaled to required autonomy)
  • Class A GHI Pyranometer
  • Class A POA Pyranometer
  • NRG 40C Anemometer
  • NRG 200M Wind Vane
  • NRG BP60 Barometric Pressure Sensor
  • NRG T60 Temperature Sensor
  • NRG RH5X Relative Humidity Sensor
  • NRG PVT1 Back of Module Temperature Sensors
  • Tipping Bucket Rain Gauge

Optional:

  • Class A Rear-side POA Pyranometer
  • Class A Albedo Measurement Kit
  • Delta-T SPN1 Sunshine Pyranometer
  • EKO STR21G Sun Tracker
  • Atonometrics RC18 Reference Cell

Array Configuration

  • NRG Data Logger | Modbus TCP (Ethernet or Fiber)
  • Uninterruptible Power Supply (scaled to required autonomy)
  • Class A POA Pyranometer
  • NRG PVT1 Back of Module Temperature Sensors

Optional:

  • Class A Rear-side Pyranometer
  • NRG Full Size Soiling Measurement Kit
  • Atonometrics RDE Soiling Measurement Kit
  • Kipp & Zonen DustIQ Soiling Sensor
  • Atonometrics RC18 Reference Cell
  • All-in-One Weather Sensor

Note: the configurations above are NRG’s recommendations based on 40 years of measurement expertise along with industry best practices. Please consult NRG for support on your project-specific configuration.

Please call us at +1 802-482-2255 for specifications.

Customer Service

+1 802-482-2255

Mon – Fri: 8:30am – 5:00pm Eastern Time (GMT-5)

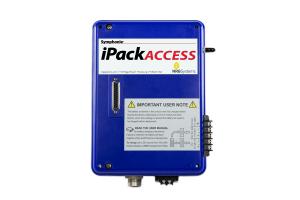

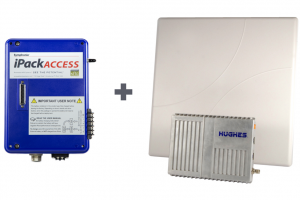

Symphonie® iPackACCESS - Solar
