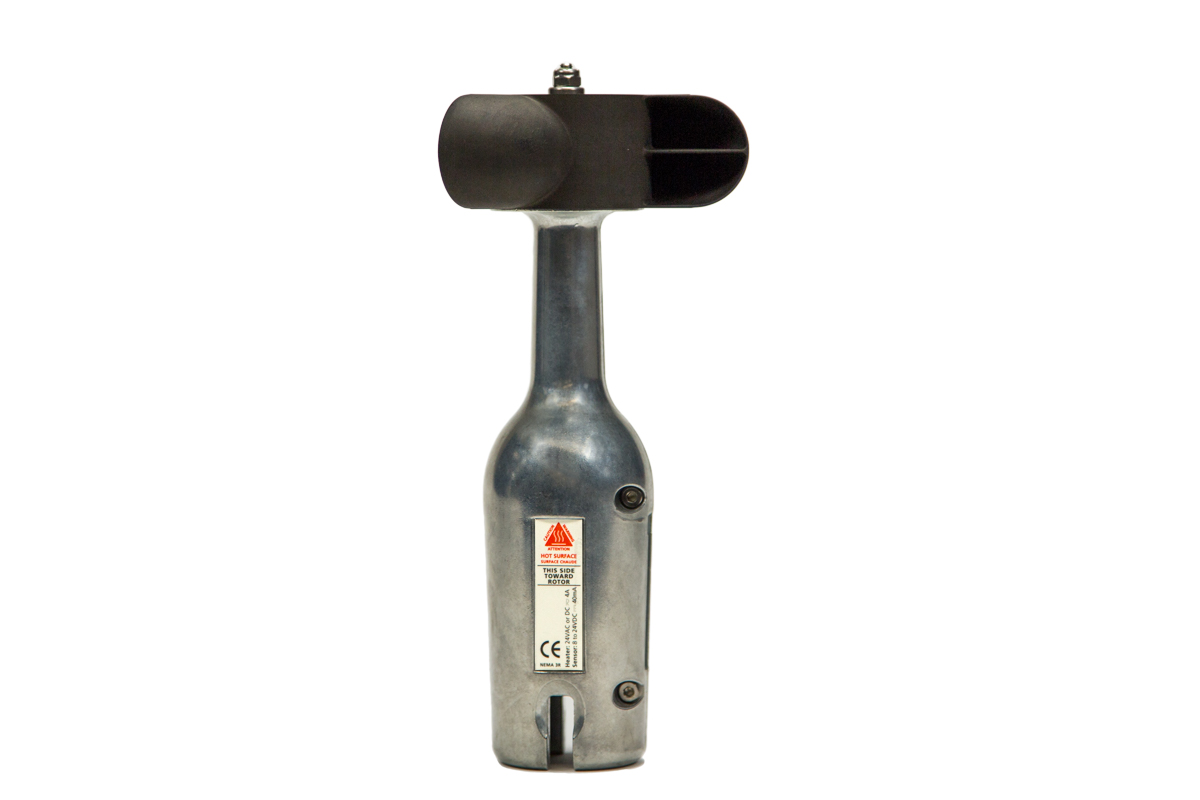

Hybrid XT Anemometer

Reliably measure wind speed for turbine control in all climates.

  • Hybrid XT Anemometer
  • Thumbnail for Hybrid XT Anemometer
  • Thumbnail for
  • Thumbnail for
  • Video #3

Hybrid XT Anemometer

#4718

Request Quote

Hybrid XT Anemometer | 4-20mA Output | 0-50m/s

#5763

Request Quote

Hybrid XT Anemometer | Push-Pull Output

#7901

Request Quote

When your turbine control sensors are not working, your turbines are not producing, so we designed our sensors to maximize your turbine availability. Our Hybrid XT technology is based on 20 years of icing climate sensor experience and over 70,000 fielded sensors.

Hybrid XT sensors are engineered with a two-stage contamination protection system to prevent dust, dirt, and water from damaging the bearings. The first level of defense is a fully sealed body that minimizes contamination ingress. Inside, a sealed bearing cartridge system prevents contamination from affecting the bearings. The result: extended bearing life and a recommended maintenance interval of 10 years—meaning fewer maintenance trips to your turbines.

Icing and extreme climates are no challenge for Hybrid XT. The all-metal design conducts heat to the whole anemometer, preventing ice buildup that can affect sensor function. Heat is radiated to the sensor head using a 96W heater that provides ample de-icing power. With Hybrid XT, you can count on worry-free operation in all weather conditions.

Reliability

  • Two-stage contamination protection extends sensor life
    • Fully sealed sensor body minimizes dust, dirt, and water ingress
    • Sealed cartridge bearing system prevents contamination from affecting the bearings
  • Shock-resistant bearing mounting prevents damage caused by rough handling
  • Rugged metal head prevents breakage due to accidental drops or icing
  • Recommended maintenance interval of 10 years eliminates unwanted trips to your turbines

Icing Performance

  • Metal sensor body conducts heat to the whole sensor, preventing ice buildup and increasing turbine availability in icing climates
  • 96W heating element provides ample de-icing power

Anemometer Accuracy

  • Accuracy: +/- (0.3 m/s + 2% of measured value)
  • Starting threshold of < 2m/s

  Hybrid XT Anemometer (#4718) Hybrid XT Anemometer | 4-20mA Output | 0-50m/s (#5763) Hybrid XT Anemometer | Push-Pull Output (#7901)
Description
Sensor type 3 Cup Heated Wind Turbine Control Anemometer 3 Cup Heated Wind Turbine Control Anemometer 3 Cup Heated Wind Turbine Control Anemometer
Applications Wind Turbine Control Wind Turbine Control Wind Turbine Control
Sensor range
  • Measuring range 0 to 50 m/s (112 mph)
  • Maximum speed 70 m/s (156 mph)
  • Measuring range 0 to 50 m/s (112 mph)
  • Maximum speed 70 m/s (156 mph)
  • Measuring range 0 to 60 m/s (133 mph)
  • Maximum speed 70 m/s (156 mph)
Instrument compatibility
  • Digital inputs of turbine controllers
  • PLCs
  • 4-20 mA current loop inputs of wind turbine controllers
  • PLCs
  • Other instruments compatible with a 4-20mA input
  • Digital inputs of turbine controllers
  • PLCs
Sensor compatibility n/a n/a
  • Direct replacement for IceFree 3 anemometers
Certifications
  • Conforms to UL Std 61010-1
  • Conforms to CSA STD C22.2 NO. 61010-1
  • CE
CE Marked CE Marked
Output signal
Signal type
  • High level square wave frequency (see manual for details)
  • Amplitude equals supply voltage
  • Other formats from optional personality module
Current loop, 4 to 20mA, sourced by the sensor
  • High level square wave frequency
  • Push/Pull (compatible with NPN or PNP inputs)
  • Amplitude equals supply voltage
Anemometer Transfer Function 0.5 m/s per Hz - 0.5 m/s
  • 4 to 20 mA corresponds to 0 m/s to 50 m/s
  • output 20 mA for > 50 m/s
Wind speed is 0.509 m/s per Hz + 0.4 m/s
Accuracy +/- (0.3 m/s + 2% of measured value) +/- (0.3 m/s + 2% of measured value) +/- (0.3 m/s + 2% of measured value)
Sensor to Sensor Variation 99.7% of sensors fall within 2% of the specified slope 99.7% of sensors fall within 2% of the specified slope 99.7% of sensors fall within 2% of the specified slope
Recommended load resistance 1200 Ω minimum 50Ω to 1000Ω(depending on power supply) 1200 Ω minimum
Calibration Available upon request Not available Available upon request
Output signal range
  • 1 to 141 Hz
  • 0 Hz output indicates fault
4 to 20 mA n/a
Resolution Frequency output, resolution dependent on controller 0.1 m/s, guaranteed monotonic Frequency output, resolution dependent on controller
Response characteristics
Threshold 1.58 m/s (3.52 mph) 1.58 m/s (3.52 mph) < 2 m/s (< 4.5 mph)
Distance constant (63% recovery) 16 m 16 m 16 m
Swept diameter of rotor 127 mm (5 inches) 127 mm (5 inches) 127 mm (5 inches)
Power requirements
Supply voltage 8 to 24 V DC 11 to 24 V DC 8 to 24 V DC
Supply current
  • 40 mA typical
  • 51 mA max. (not including heater)
20 mA typical, plus output current.
  • 40 mA typical
  • 51 mA max. (not including heater)
Heater supply voltage 24 V, AC or DC 24 V, AC or DC 24 V, AC or DC
Heater supply current
  • Self regulating
  • 1 to 4 A, thermal load dependant
  • Cold start inrush current: 9 A peak
  • Inrush drops below 4 A within 30 secs.
  • Self regulating
  • 1 to 4 A, thermal load dependant
  • Cold start inrush current: 9 A peak
  • Inrush drops below 4 A within 30 secs.
  • Self regulating
  • 1 to 4 A, thermal load dependant
  • Cold start inrush current: 9 A peak
  • Inrush drops below 4 A within 30 secs.
Installation
Mounting Sensor housing compatible with:
  • 25 mm pipe per BS1387, or
  • 32 mm tube, or
  • 1 inch IPS pipe, or
  • 1-1/4 inch tube
    Quick disconnect allows for easy mounting or dismounting
    captive M6 clamp bolt, nut, and connector
Sensor housing compatible with:
  • 25 mm pipe per BS1387, or
  • 32 mm tube, or
  • 1 inch IPS pipe, or
  • 1-1/4 inch tube
    Quick disconnect allows for easy mounting or dismounting
    captive M6 clamp bolt, nut, and connector
Sensor housing compatible with:
  • 25 mm pipe per BS1387, or
  • 32 mm tube, or
  • 1 inch IPS pipe, or
  • 1-1/4 inch tube
    Quick disconnect allows for easy mounting or dismounting
    captive M6 clamp bolt, nut, and connector
Tools required 10 mm wrench 10 mm wrench 10 mm wrench
Accessories
  • Pre-wired cable assembly (not included)
  • Personality Module (interface converter) (not included)
  • Pre-wired cable assembly (not included)
  • Pre-wired cable assembly (not included)
Wiring Sensor plugs onto captive connector - see manual for wiring details Sensor plugs onto captive connector - see manual for wiring details Sensor plugs onto captive connector - see manual for wiring details
Environmental
Operating temperature range -40 ° C to 60 ° C ( -40 ° F to 140 ° F) -40 ° C to 60 ° C (-40 ° F to 140 ° F) -40 ° C to 50 ° C ( -40 ° F to 122 ° F) Ambient
Operating humidity range 0 to 100% RH 0 to 100% RH 0 to 100% RH
Other
  • IP55 per IEC 60529 and DIN40050-9 (Ingress Protection)
  • MIL-STD-810F Method 509.4 (96 Hour Salt Fog Corrosion)
  • IEC 60068-2-52, Severity 1 (28 Day Salt Fog Corrosion)
  • IEC60068-2-38 Z/AD (Cyclic Humidity & Temperature)
  • IEC 60068-2-78 (Constant Humidity)
  • IEC 60068-2-6, Test Fc (Sinusoidal Vibration)
  • IEC 60068-2-64, Test Fh (Random Vibration)
  • packaging meets ISTA 1A (Drop Test)
  • IP55 per IEC 60529 and DIN40050-9 (Ingress Protection)
  • MIL-STD-810F Method 509.4 (96 Hour Salt Fog Corrosion)
  • IEC 60068-2-52, Severity 1 (28 Day Salt Fog Corrosion)
  • IEC60068-2-38 Z/AD (Cyclic Humidity & Temperature)
  • IEC 60068-2-78 (Constant Humidity)
  • IEC 60068-2-6, Test Fc (Sinusoidal Vibration)
  • IEC 60068-2-64, Test Fh (Random Vibration)
  • packaging meets ISTA 1A (Drop Test)
  • IP55 per IEC 60529 and DIN40050-9 (Ingress Protection)
  • MIL-STD-810F Method 509.4 (96 Hour Salt Fog Corrosion)
  • IEC 60068-2-52, Severity 1 (28 Day Salt Fog Corrosion)
  • IEC60068-2-38 Z/AD (Cyclic Humidity & Temperature)
  • IEC 60068-2-78 (Constant Humidity)
  • IEC 60068-2-6, Test Fc (Sinusoidal Vibration)
  • IEC 60068-2-64, Test Fh (Random Vibration)
  • packaging meets ISTA 1A (Drop Test)
Physical
Connections
  • Quick release connector mount
  • 300V rated insulation
  • Outside diameter of cable = 8.89mm(0.35inches)
  • braided shield overall
  • two heater wires 20 AWG
  • sensor wires: power, common, signals, 22 AWG
  • Quick release connector mount
  • 600V rated insulation
  • Outside diameter of cable = 8.89mm(0.35inches)
  • Braided shield overall
  • Two heater wires (20 AWG)
  • Three sensor wires: power, common, signal (22 AWG, shielded from heater power)
  • Quick release connector mount
  • 300V rated insulation
  • Outside diameter of cable = 8.89mm(0.35inches)
  • Braided shield overall
  • Two heater wires (20 AWG)
  • Four sensor wires (22 AWG, shielded from heater power)
Weight 1.45 kg (3.2 lbs) 1.45 kg (3.2 lbs) 1.45 kg (3.2 lbs)
Dimensions
  • Overall height: 237.6 mm (9.35 inches)
  • Swept diameter of rotor: 127 mm (5 inches)
  • Body diameter: 58 mm (2.3 inches)
  • Overall height: 237.6 mm (9.35 inches)
  • Swept diameter of rotor: 127 mm (5 inches)
  • Body diameter: 58 mm4 (2.3 inches)
  • Overall height: 237.6 mm (9.35 inches)
  • Swept diameter of rotor: 127 mm (5 inches)
  • Body diameter: 58 mm (2.3 inches)
Materials

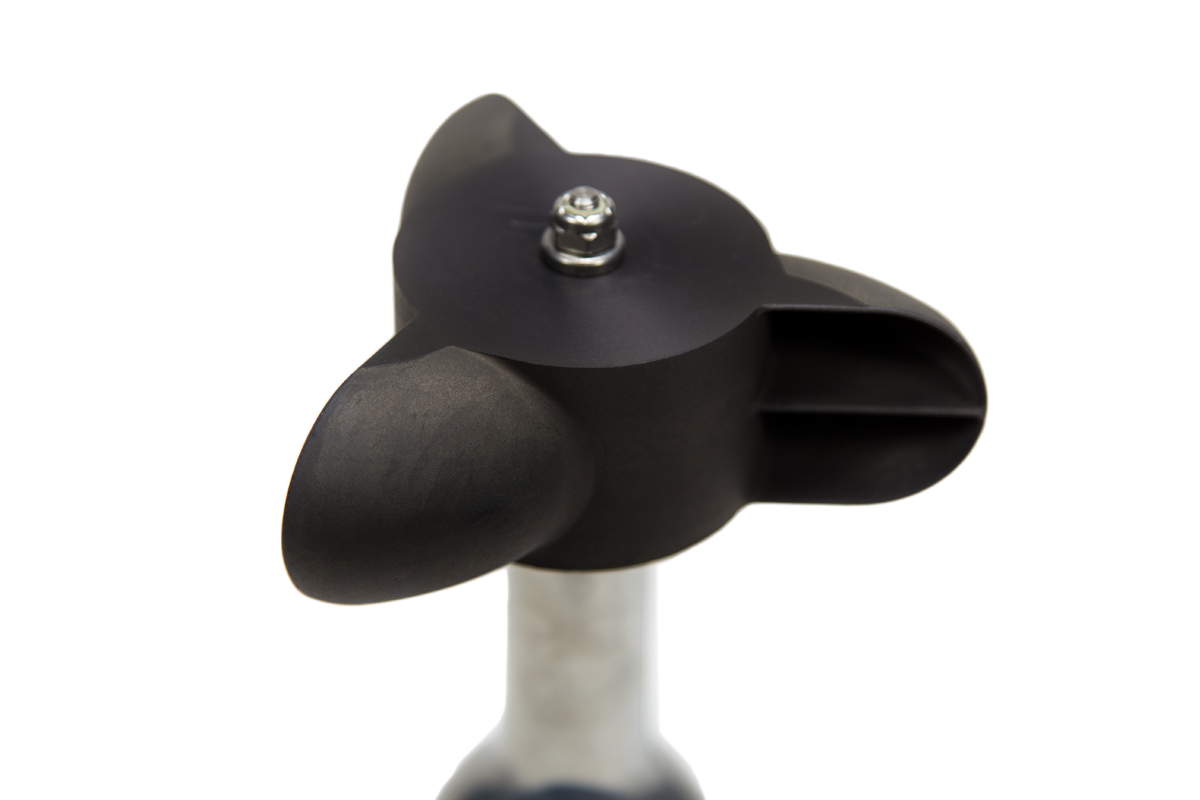

Cups Black Anodized Aluminum Black Anodized Aluminum Black Anodized Aluminum
Body Zinc Zinc Zinc
Shaft Stainless Steel Stainless Steel Stainless Steel
Bearing Double-shielded stainless steel ball bearings in a protective cartridge Double-shielded stainless steel ball bearings in a protective cartridge Double-shielded stainless steel ball bearings in a protective cartridge
Hybrid XT Personality Module

Hybrid XT Personality Module

Convert the frequency output of the Hybrid XT sensor to the signal that your wind turbine controller requires.
