Wind Mounting Booms

Wind Mounting Booms

We offer a range of high-quality mounting booms designed for fast and precise installation of meteorological sensors at any height on a variety of tower types, including both NRG TallTowers™ and third-party lattice towers.

Every boom kit consists of three main components:

  • Mounting hardware to secure the boom to either a tubular or lattice tower
  • A robust boom arm
  • A boom extension to mount your sensor of choice

There are four main categories of NRG mounting hardware:

Tubular Booms mount anemometers and wind vanes on NRG TallTowers. Our tubular booms come in a number of lengths, covering a wide range of measurement applications. Boom extensions are available to mount any NRG anemometer or NRG wind vane, as well as the WindSensor P2546-OPR Anemometer or Thies First Class Advanced Anemometer. The 2.4 m (95”) option is the standard boom used for wind resource assessment.

Lattice Booms mount anemometers and wind vanes on third-party lattice towers. Boom extensions are available to mount any NRG anemometer or NRG wind vane, as well as the WindSensor P2546-OPR or Thies First Class Advanced Anemometers. Lattice booms are available in 95” and 113” lengths and are compatible with lattice tower face widths of 18-24 ”.

Additional Mounting Hardware includes Boom Extensions, Hose Clamps, and U-Bolts. These items are included in the boom kits wherever they are needed, and they can also be purchased separately.

TUBULAR BOOMS

Mounting Boom | 1.93M (76"), Tubular

Mounting Boom | 1.93M (76"), Tubular

Mount RM Young 27106T Vertical Anemometers on NRG TallTowers™.

Mounting Boom | .52m (20.5"), Tubular, Iridium Antenna

Mounting Boom | .52m (20.5"), Tubular, Iridium Antenna

Mount your Iridium iPack Antenna on an NRG TallTower™.

Mounting Boom | 1.53m (60.5"), Tubular

Mounting Boom | 1.53m (60.5"), Tubular

Mount your anemometers and wind vanes on NRG TallTowers™.

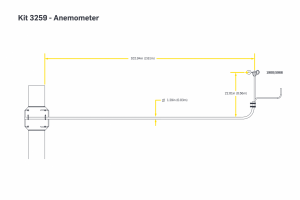

Mounting Boom | 2.4m (95"), Tubular

Mounting Boom | 2.4m (95"), Tubular

Mount your anemometers and wind vanes on NRG TallTowers™ according to industry best practices.

Mounting Boom | 2.87m (113"), Tubular

Mounting Boom | 2.87m (113"), Tubular

Mount your anemometers and wind vanes on NRG TallTowers™ according to industry best practices.

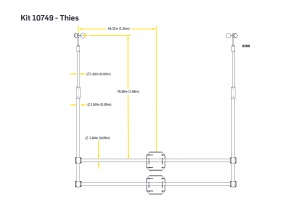

Mounting Boom | Goalpost

Mounting Boom | Goalpost

Mount redundant industry-standard class 1 anemometers on a NRG 80m XHD TallTower in compliance with Annex G of the IEC 61400-12-1:2005 with this goalpost boom.

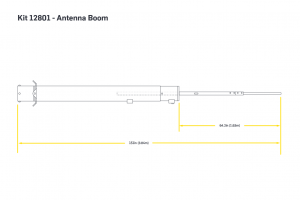

Mounting Boom | Antenna

Mounting Boom | Antenna

Mount Thies FCA anemometers on NRG 50m and 60m XHD TallTowers in compliance with Annex G of the IEC 61400-12-1 Ed. 1 (2005) and Ed. 2 (2017) standards with this antenna boom.

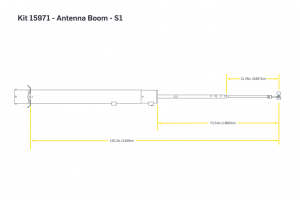

Mounting Boom | Antenna, S1/WindSensor

Mounting Boom | Antenna, S1/WindSensor

Mount NRG S1 and WindSensor P2546-OPR Anemometers on NRG 50m and 60m XHD TallTowers in compliance with Annex G of the IEC 61400-12-1 Ed. 1 (2005) and Ed. 2 (2017) standards with this antenna boom.

LATTICE BOOMS

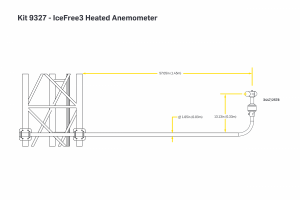

Mounting Boom | 2.4m (95"), Lattice

Mounting Boom | 2.4m (95"), Lattice

Mount your anemometers and wind vanes on third-party lattice towers according to industry best practices.

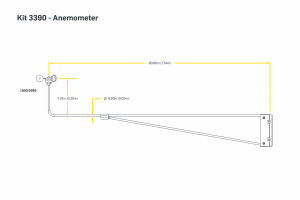

Mounting Boom | 2.87m (113"), Lattice

Mounting Boom | 2.87m (113"), Lattice

Mount your anemometers and wind vanes on third-party lattice towers according to industry best practices.

MOUNTING HARDWARE

Boom Extensions

Boom Extensions

Extend and retrofit NRG booms to meet your project’s needs with our boom extensions and adapter kits.

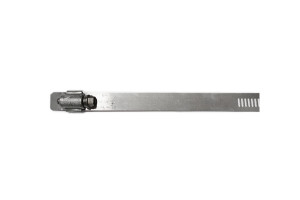

Hose Clamps

Hose Clamps

Secure mounting booms to NRG TallTowers™ with hose clamps sized specifically for your tower tube.

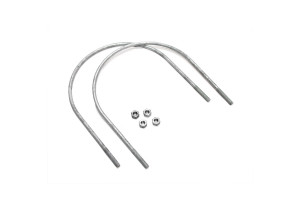

U-Bolts

U-Bolts

Mount NRG sensor booms or shelter boxes to NRG TallTowers™.
