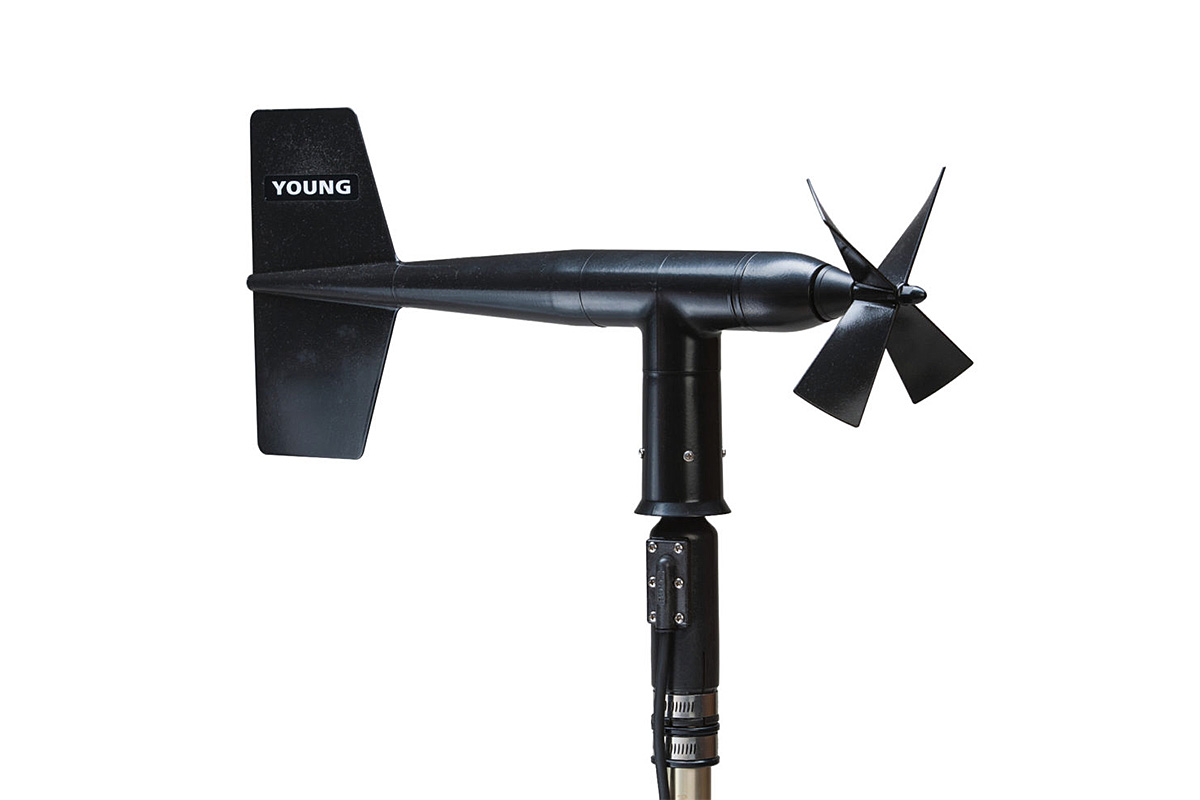

RM Young 05108-45 Heavy Duty Wind Monitor HD-Alpine
Reliably measure horizontal wind speed and direction in the harshest environments with the RM Young 05108-45 Heavy Duty Wind Monitor HD-Alpine.
Configuration Options
Details
The RM Young 05108-45 Heavy Duty Wind Monitor HD-Alpine is designed to deliver accurate, reliable wind speed and direction measurements in extreme, high-elevation environments. Its rugged all-black design promotes thermal warming from sun exposure, while an ice-resistant coating maintains performance in alpine conditions. Corrosion-resistant ceramic bearings and a high-pitch propeller further enhance durability, ensuring long-term reliability in demanding applications.
The RM Young 05108-45 integrates seamlessly with LOGR | Met and SymphoniePRO Data Loggers. An HD single-sided 113", 1" IPT mounting boom and a 5-conductor sensor cable (available in 70m or 90m lengths) are required to mount the sensor to a met tower. Optional 6-channel surge protection is also available.
Applications
Specificiations Print Specs
| ALPINE, 90M, SURGE PROTECTION (#21057) | ALPINE, 70M, SURGE PROTECTION (#21631) | |
|---|---|---|
| Description | ||
| Sensor type | Combined Propeller Anemometer and Wind Vane | Combined Propeller Anemometer and Wind Vane |
| Applications | Measuring wind speed and wind direction | Measuring wind speed and wind direction |
| Sensor range | Wind speed: 0-100 m/s (224 mph) / Wind Direction: 360° mechanical, 355° electrical (5° open) | Wind speed: 0-100 m/s (224 mph) / Wind Direction: 360° mechanical, 355° electrical (5° open) |
| Instrument compatibility |
NRG LOGR | Met Data Loggers and SymphoniePRO Data Loggers
|
NRG LOGR | Met Data Loggers and SymphoniePRO Data Loggers
|
| Output signal | ||
| Signal type | Wind speed: magnetically induced AC voltage, 3 pulses per revolution. Wind direction: analog DC voltage from conductive plastic potentiometer | Wind speed: magnetically induced AC voltage, 3 pulses per revolution. Wind direction: analog DC voltage from conductive plastic potentiometer |
| Accuracy | Wind speed: ± 0.3 m/s (0.6 mph) or 1% of reading / Wind direction: ± 3 degrees | Wind speed: ± 0.3 m/s (0.6 mph) or 1% of reading / Wind direction: ± 3 degrees |
| Response characteristics | ||
| Threshold | Wind speed: 1.0 m/s (2.2 mph) Wind direction: 1.0 m/s (2.2 mph) at 10° displacement | Wind speed: 1.0 m/s (2.2 mph) Wind direction: 1.0 m/s (2.2 mph) at 10° displacement |
| Distance constant (63% recovery) | Wind speed: 2.9 m (8.9 ft) | Wind speed: 2.9 m (8.9 ft) |
| Delay distance | Wind direction: 1.3 m (4.3 ft) | Wind direction: 1.3 m (4.3 ft) |
| Power requirements | ||
| Supply voltage | Regulated DC voltage, 15 VDC max | Regulated DC voltage, 15 VDC max |
| Installation | ||
| Mounting | Use with NRG P/N 3259 Boom | Use with NRG P/N 3259 Boom |
| Accessories | Includes 6 Channel Surge Protecion | Includes 6 Channel Surge Protecion |
| Environmental | ||
| Operating temperature range | -50 to +60°C (-58 to +140°F) | -50 to +60°C (-58 to +140°F) |
| Physical | ||
| Weight | 1.0kg (2.2 lbs) | 1.0kg (2.2 lbs) |
| Dimensions | Overall height: 37 cm (14.6 in), Overall length: 55 cm (21.7 in), Propeller: 18 cm (7 in) diameter | Overall height: 37 cm (14.6 in), Overall length: 55 cm (21.7 in), Propeller: 18 cm (7 in) diameter |
| Materials | ||
| Cable | 90m Cable | 70m Cable |
| Shipping | ||
| Shipping weight | 2.3 kg (5 lbs) | 2.3 kg (5 lbs) |
- Sensor type
- Combined Propeller Anemometer and Wind Vane
- Applications
- Measuring wind speed and wind direction
- Sensor range
- Wind speed: 0-100 m/s (224 mph) / Wind Direction: 360° mechanical, 355° electrical (5° open)
- Instrument compatibility
-
NRG LOGR | Met Data Loggers and SymphoniePRO Data Loggers
- Signal type
- Wind speed: magnetically induced AC voltage, 3 pulses per revolution. Wind direction: analog DC voltage from conductive plastic potentiometer
- Accuracy
- Wind speed: ± 0.3 m/s (0.6 mph) or 1% of reading / Wind direction: ± 3 degrees
- Threshold
- Wind speed: 1.0 m/s (2.2 mph) Wind direction: 1.0 m/s (2.2 mph) at 10° displacement
- Distance constant (63% recovery)
- Wind speed: 2.9 m (8.9 ft)
- Delay distance
- Wind direction: 1.3 m (4.3 ft)
- Supply voltage
- Regulated DC voltage, 15 VDC max
- Mounting
- Use with NRG P/N 3259 Boom
- Accessories
- Includes 6 Channel Surge Protecion
- Operating temperature range
- -50 to +60°C (-58 to +140°F)
- Weight
- 1.0kg (2.2 lbs)
- Dimensions
- Overall height: 37 cm (14.6 in), Overall length: 55 cm (21.7 in), Propeller: 18 cm (7 in) diameter
- Cable
- 90m Cable
- Shipping weight
- 2.3 kg (5 lbs)
- Sensor type
- Combined Propeller Anemometer and Wind Vane
- Applications
- Measuring wind speed and wind direction
- Sensor range
- Wind speed: 0-100 m/s (224 mph) / Wind Direction: 360° mechanical, 355° electrical (5° open)
- Instrument compatibility
-
NRG LOGR | Met Data Loggers and SymphoniePRO Data Loggers
- Signal type
- Wind speed: magnetically induced AC voltage, 3 pulses per revolution. Wind direction: analog DC voltage from conductive plastic potentiometer
- Accuracy
- Wind speed: ± 0.3 m/s (0.6 mph) or 1% of reading / Wind direction: ± 3 degrees
- Threshold
- Wind speed: 1.0 m/s (2.2 mph) Wind direction: 1.0 m/s (2.2 mph) at 10° displacement
- Distance constant (63% recovery)
- Wind speed: 2.9 m (8.9 ft)
- Delay distance
- Wind direction: 1.3 m (4.3 ft)
- Supply voltage
- Regulated DC voltage, 15 VDC max
- Mounting
- Use with NRG P/N 3259 Boom
- Accessories
- Includes 6 Channel Surge Protecion
- Operating temperature range
- -50 to +60°C (-58 to +140°F)
- Weight
- 1.0kg (2.2 lbs)
- Dimensions
- Overall height: 37 cm (14.6 in), Overall length: 55 cm (21.7 in), Propeller: 18 cm (7 in) diameter
- Cable
- 70m Cable
- Shipping weight
- 2.3 kg (5 lbs)
