Hybrid XT Retrofit Kit | Siemens 2.3MW

Easily transition from your previous sensor to the Hybrid XT on your Siemens 2.3MW turbine.

  • Hybrid XT Retrofit Kit | Siemens 2.3MW

    Hybrid XT Anemometer Retrofit Kit | Siemens 2.3MW (#9373)

  • Hybrid XT Vane Retrofit Kit | Siemens 2.3MW (#9374)

  • Hybrid XT Heater Power Kit | Siemens | 2.3MW (#9375) | Note: Only one per turbine is needed

  • Thumbnail for Hybrid XT Retrofit Kit | Siemens 2.3MW
  • Thumbnail for
  • Thumbnail for
  • Video #3

Hybrid XT Anemometer Retrofit Kit | Siemens 2.3MW

#9373

Request Quote

Hybrid XT Vane Retrofit Kit | Siemens 2.3MW

#9374

Request Quote

Hybrid XT Heater Power Kit | Siemens | 2.3MW

#9375

Request Quote

We know you are looking for solutions, not just sensors, so we have created complete retrofit kits so you can easily transition from your previous sensor to the Hybrid XT sensor. Each retrofit kit includes a sensor, the cable needed for your application, and a mechanical mounting solution to fit the sensor to your turbine.

Siemens 2.3MW Retrofit Kits are designed specifically for Siemens 2.3MW turbines. For solutions tailored to your platform, please check out our other Hybrid XT Retrofit Kits:

"After a large icing event in Texas shut down production for an extended period of time, we had to make a change. We collaborated with NRG to produce a solution for integrating the Hybrid XT sensors onto the Siemens 2.3 platform. The result is that the commercial Hybrid XT Retrofit Kits are now up and running well on our Siemens fleets, and we are much less concerned with icing or snow events stopping production on any of our North American sites."

Federico Barron, Technical Fleet Support Global Unit Next Generation, E.ON Climate & Renewables North America, LLC

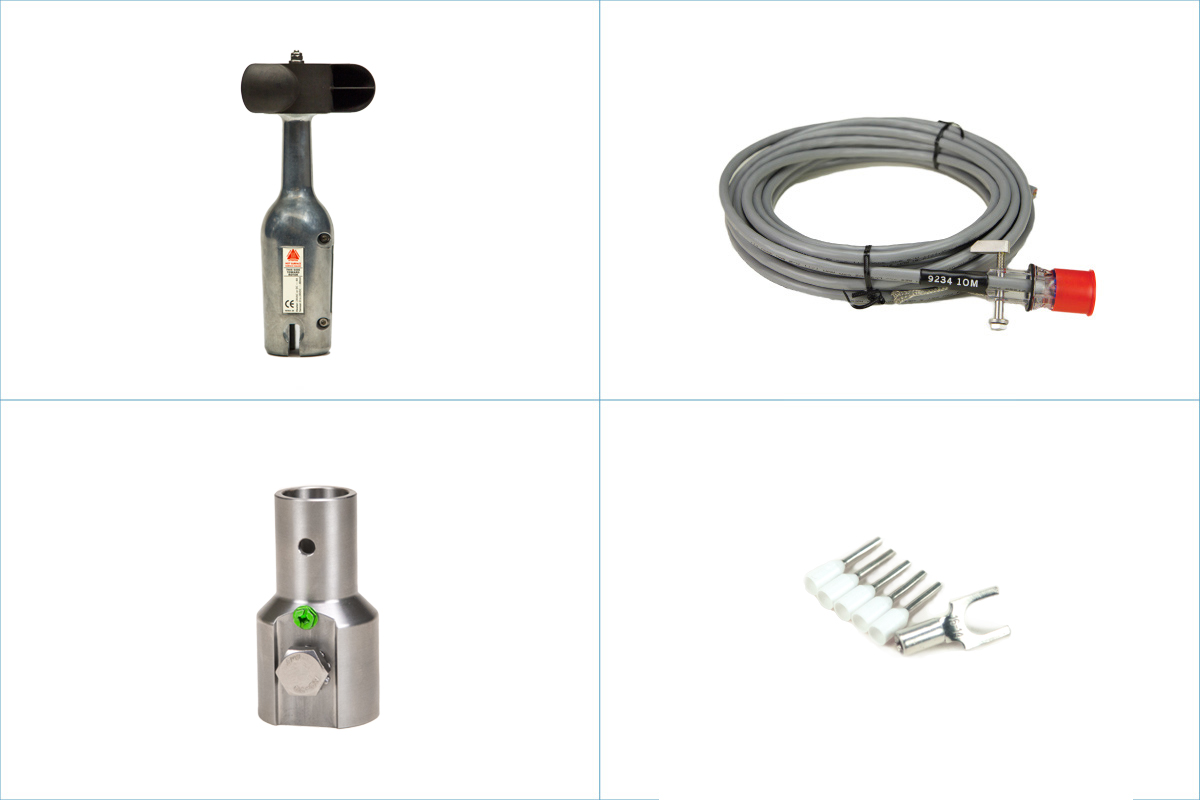

9373 retrofit kit includes:

  • 7901 - Hybrid XT Push-Pull Anemometer
  • 9234 - 10m cable
  • 9272 - Mechanical adapter assembly (required to mount the sensor)
  • 10200 - Siemens Hybrid XT Retrofit Sensor Wiring Supplies (required to wire the sensor)

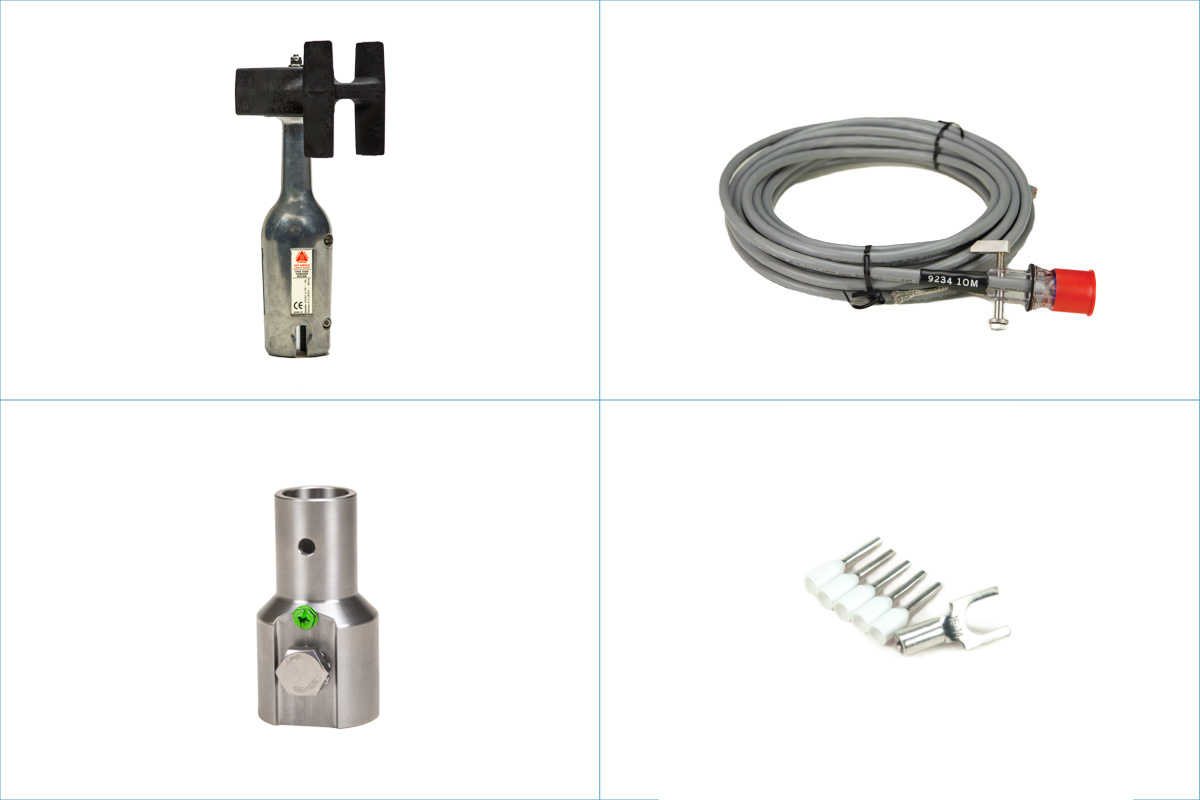

9374 retrofit kit includes:

  • 9363 - Hybrid XT Push-Pull Vane, Active High
  • 9234 - 10m cable
  • 9272 - Mechanical adapter assembly (required to mount the sensor)
  • 10200 - Siemens Hybrid XT Retrofit Sensor Wiring Supplies (required to wire the sensor)

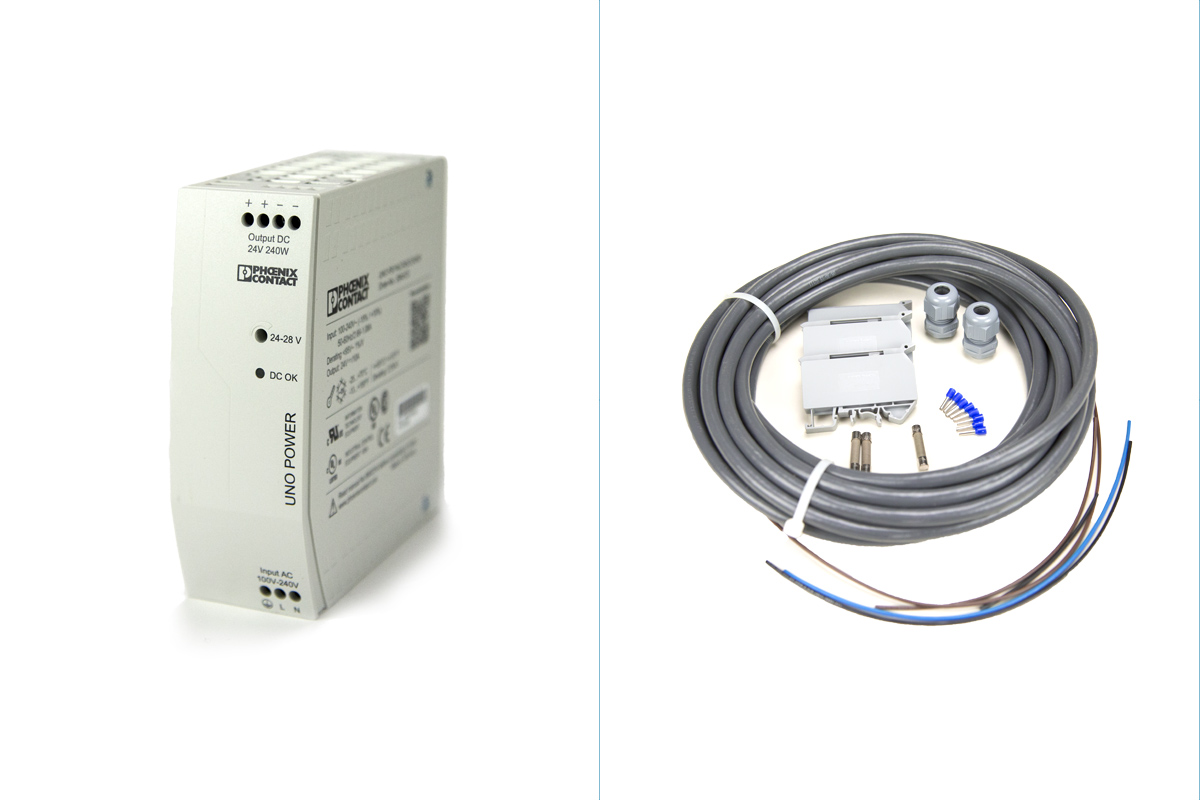

9375 power kit includes:

  • 10119 - Power Supply, 24V DC
  • 10127 - Siemens Hybrid XT Power Kit Wiring Supplies (required to wire the sensor)

Note: Only one 9375 power kit per turbine is needed



Please call us at +1 802-482-2255 for specifications.
