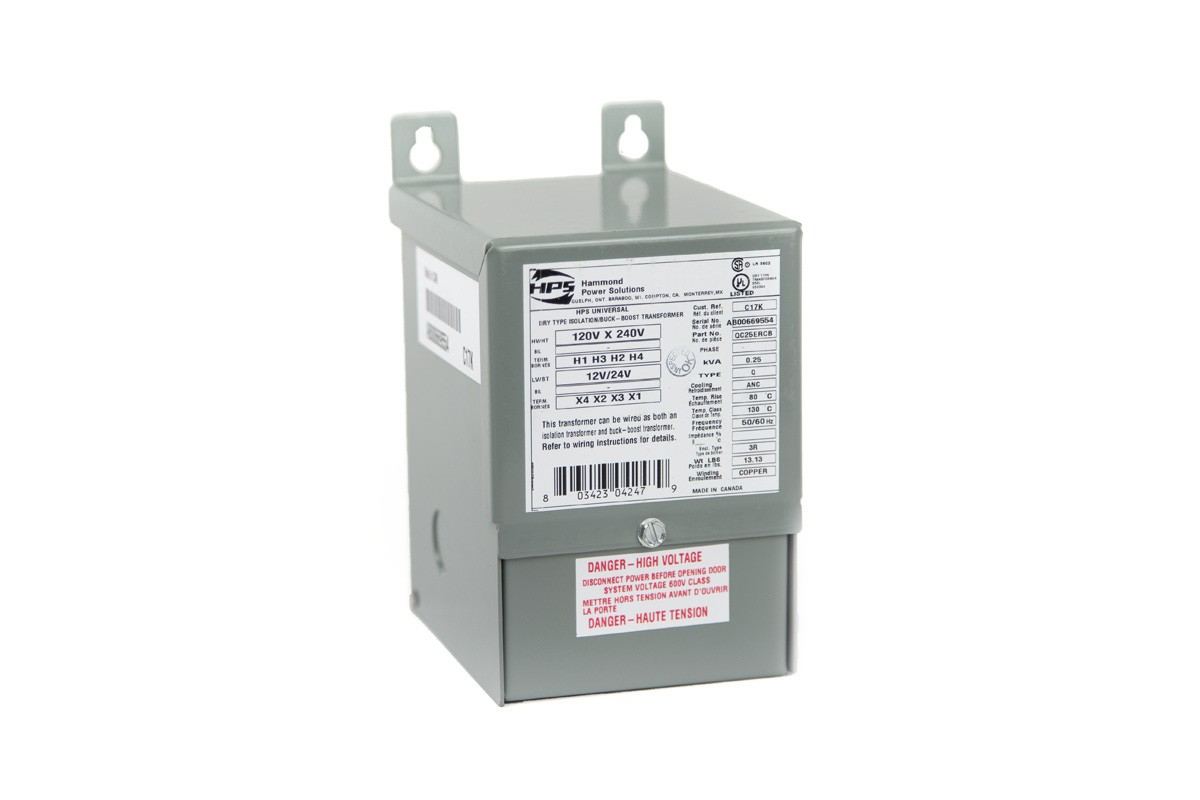

Transformer - IceFree3 Sensors
Use this transformer with IceFree3 heated sensors to convert 120/240 VAC to 24 VAC.
Configuration Options
#2218
HYBRID XT FOR WRA
Details
NRG IceFree3 sensors require 24 VAC or DC current to power their internal heater. If you only have 120/240 V grid power available, use one of our transformers to step the current down to 24 V AC.
Benefits
- Accommodates up to two IceFree3 heated sensors
- 120 or 240 V to 24 VAC, 250 watts
- Indoor or outdoor use
- UL listed
Specifications Print Specs
HYBRID XT FOR WRA (#2218) | |
---|---|
Description | |
Applications | powering heaters of one or two IceFree or Hybrid XT sensors from mains power |
Instrument compatibility | up to two IceFree or Hybrid XT sensors |
Power requirements | |
Supply voltage | 120 VAC or 240 VAC (selected by input wiring) |
Heater supply voltage | 24 VAC |
Physical | |
Connections | Wire leads in integral junction box |
Weight | 6 kg (13.2 pounds) |
Dimensions | 110 mm x 185 mm x 145 mm |
Materials | |
Enclosure | Steel, NEMA 3R |
Description
- Applications
- powering heaters of one or two IceFree or Hybrid XT sensors from mains power
- Instrument compatibility
- up to two IceFree or Hybrid XT sensors
Power requirements
- Supply voltage
- 120 VAC or 240 VAC (selected by input wiring)
- Heater supply voltage
- 24 VAC
Physical
- Connections
- Wire leads in integral junction box
- Weight
- 6 kg (13.2 pounds)
- Dimensions
- 110 mm x 185 mm x 145 mm
Materials
- Enclosure
- Steel, NEMA 3R
