POA Bracket | Pyranometer, Dual, Square TT + Round TT, Isolated

Simplify the installation of two of your chosen pyranometers in a plane-of-array position on square and round torque tubes for tracked arrays with this bracket.

Details
Specifications

Details

NRG's latest brackets simplify the installation of two of your chosen pyranometers in a plane-of-array position on square and round torque tubes for tracked arrays. This alignment facilitates accurate monitoring of solar energy availability, system performance, soiling effects, and enables effective analysis and optimization of solar energy systems.

Compatible sensor models include the NRG R1 Pyranometer, the old and new generation body designs from Hukseflux, as well as Kipp & Zonen’s CMP / SMP / SUV line.

Applications

Solar Resource Monitoring

Solar Resource Assessment

Recommended Items

Hukseflux SR20 Pyranometer

Hukseflux SR30-D1 Pyranometer

Specifications Print Specs

Description

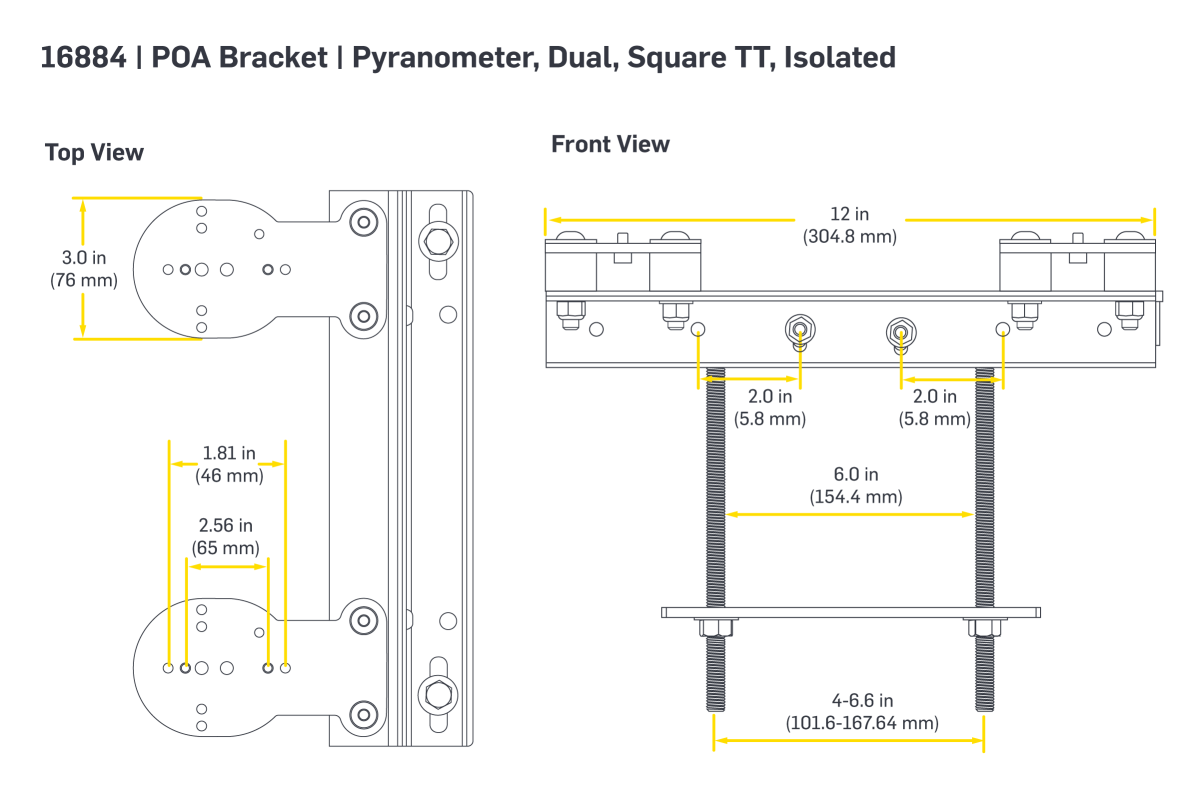

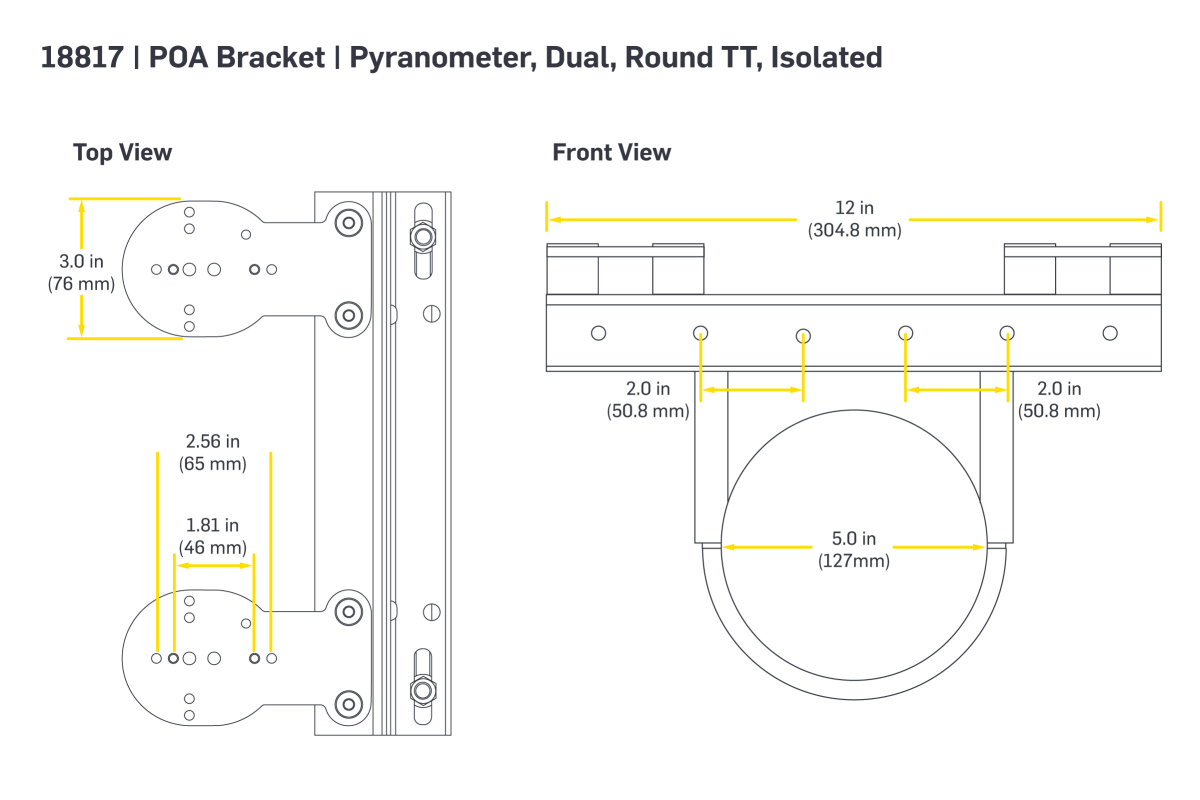

	PYRANOMETER, DUAL, SQUARE TT, ISOLATED (#16884)	PYRANOMETER, DUAL, ROUND TT, ISOLATED (#18817)
Applications	Isolated aluminum mount for two pyranometers to all trackered arrays (square torque tubes or varying dimensions & octagonal torque tubes)	Isolated aluminum mount for side by side pyranometers to trackered arrays (5" round torque tubes)
Sensor compatibility	NRG R2 Pyranometers Hukseflux SR 30, 20, 05 Kipp and Zonen SUV/CUV5	NRG R2 Pyranometers Hukseflux SR 30, 20, 05 Kipp and Zonen SUV/CUV5
Installation
Mounting	Clamps to torque tubes using a top & botton plate and 7" bolts (3/8" HW)	Clamps to torque tube using a 5" U-bolt
Tools required	M5 hex & M4 hex 1/2" nut driver & 7/16" nut driver & 9/16" nut driver spirit or digital level Refer to installation manual details/sensor manual for sensor specific details	M5 hex & M4 hex 1/2" nut driver & 7/16" nut driver & 9/16" nut driver spirit or digital level Refer to installation manual details/sensor manual for sensor specific details
Recommended for installation	Antiseize	Antiseize
Physical
Weight	1.6 lbs	1.6 lbs
Boom diameter	Works with torque tube min 4 inches (101mm) max 6 inches (150mm)	Works with 5" torque tube
Offset height	Adjustable height - can be +2" or -1"	Adjustable height - can be +2" or -1"
Materials
Universal mounting plate	Aluminum, electrically isolated from array using nylon washer stack-up	Aluminum, electrically isolated from array using nylon washer stack-up

Description

Applications: Isolated aluminum mount for two pyranometers to all trackered arrays (square torque tubes or varying dimensions & octagonal torque tubes)
Sensor compatibility: NRG R2 Pyranometers
Hukseflux SR 30, 20, 05
Kipp and Zonen SUV/CUV5

Installation

Mounting: Clamps to torque tubes using a top & botton plate and 7" bolts (3/8" HW)
Tools required: M5 hex & M4 hex
1/2" nut driver & 7/16" nut driver & 9/16" nut driver
spirit or digital level
Refer to installation manual details/sensor manual for sensor specific details
Recommended for installation: Antiseize

Physical

Weight: 1.6 lbs
Boom diameter: Works with torque tube min 4 inches (101mm) max 6 inches (150mm)
Offset height: Adjustable height - can be +2" or -1"

Materials

Universal mounting plate: Aluminum, electrically isolated from array using nylon washer stack-up
