34m TallTower™

The 34m TallTower is ideal for smaller-scale or remote distributed wind energy projects where the installation of taller towers may not be possible.

  • 34m TallTower™

34m TallTower | No Paint, Anchors, Ginpole

#4257

Request Quote

Based on robust, 152 mm (6”) diameter tubular construction, the 34m TallTower maximizes portability without compromising tower strength, allowing for reliable data collection at even the hardest-to-reach sites. Low material costs make this tower one of our most economical resource assessment options.

Add a SymphoniePLUS®3 Data Logger and a Symphonie Sensor Kit to your order to complete your wind resource assessment system and enjoy the savings of NOW System pricing.

  • Strong steel tube construction

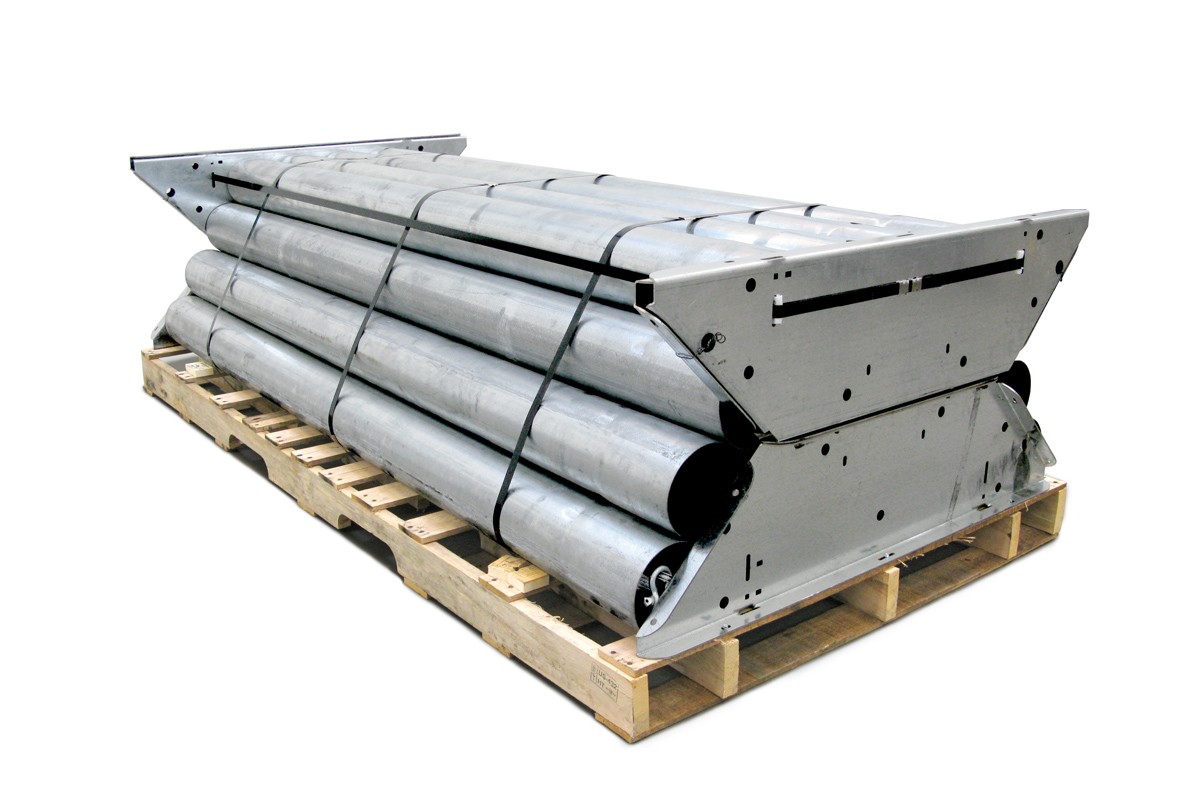

  • Compact Envirocrate™ packaging
  • 34 meter tilt-up tower
  • Steel baseplate
  • Pre-measured guy wires
  • 17 bright yellow guy wire guards
  • Screw-in anchors
  • Necessary hardware, ginpole, and instructions for assembly
  34m TallTower | No Paint, Anchors, Ginpole (#4257)
Installation
Tools required See manual available in the Dcouments + Downloads tab:
34m TallTower Installation
Winch required 4300 - Winch | 4500 lb. - 34m Towers
Ginpole required Included
Physical
Erected height 34.57 m (113 feet 5 inches)
Tube diameter 152 mm (6 inches)
Footprint 18.29 m (60 feet)
Guyset levels
  • 8.4 m (27 feet 5 inches)
  • 16.4 m (53 feet 11 inches)
  • 24.5 m (80 feet 5 inches)
  • 32.6 m (106 feet 11 inches)
Materials
Tube Galvanized steel
Guy wires 4.8 mm (3/16 inch) 7x7 galvanized aircraft cable
Guy rings Galvanized steel
Anchors Screw in, 152mm (6 inch) diameter, 1.7m (66 inch) long galvanized steel
Baseplate Galvanized steel
Wire rope clips 4.8 mm (3/16 inch) galvanized steel
Structural
Winch Load 8896 N (2000 lbs)
Safety features
Obstruction marking None
