10m TallTower™

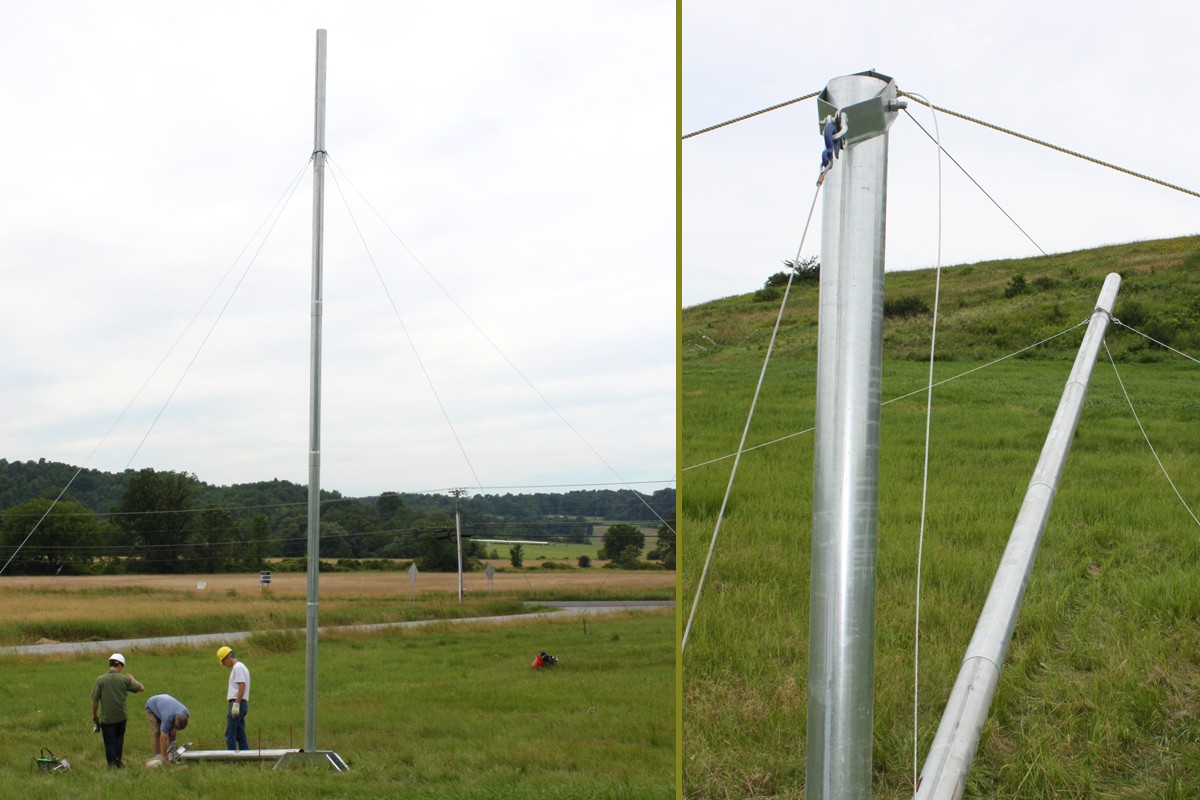

The 10m TallTower is ideal for sites where taller towers are not possible due to local permitting or terrain constraints.

  • 10m TallTower™
  • Thumbnail for 10m TallTower™
  • Thumbnail for

10m TallTower | With Anchors; Ginpole and Winch Sold Separately

#8389

Request Quote

The 10m TallTower is an ideal platform to support:

  • Early-stage wind energy resource prospecting
  • Wind resource assessment for smaller-scale wind projects
  • Solar resource assessment
  • Weather observation sensor networks
  • Temporary wireless communication networks that require fast deployment

Note: The ginpole and winch are sold separately and required for installation. Both can be used for numerous tower installations.

  • Low-cost, simple, and quickly deployable design requires no concrete foundation and only minimal tools, a 12V DC electric winch, and a three-member crew
  • Robust, 152 mm (6”) diameter tubular construction is engineered to survive maximum wind and extreme ice loading

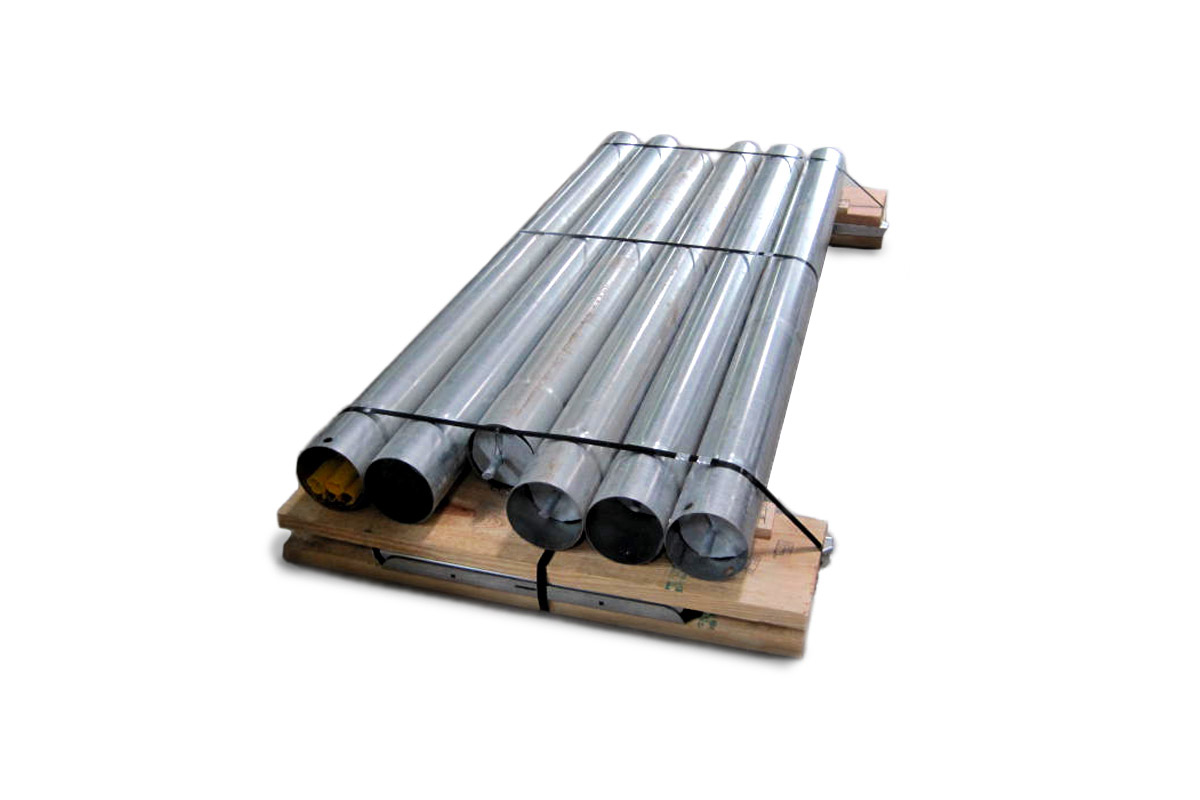

  • Lightweight, compact Envirocrate™ packaging
  • 10 meter tilt-up tower
  • Steel baseplate
  • Pre-measured guy wires
  • Screw-in anchors
  • Necessary hardware and instructions for assembly



  10m TallTower | With Anchors; Ginpole and Winch Sold Separately (#8389)
Installation
Tools required See manual available in the Dcouments + Downloads tab:
10m TallTower Installation
Winch required 4300 - Winch | 4500 lb. - 34m Towers
Ginpole required 8457 - Ginpole | 10m Tower
Physical
Erected height 10 m (32' - 9.7")
Guyset levels
  • 8.3 m (27' - 4")
Materials
Tube Galvanized steel
Guy wires 4.8 mm (3/16 inch) 7x7 galvanized aircraft cable
Guy rings Galvanized steel
Anchors Screw in, 152mm (6 inch) diameter, 1.7m (66 inch) long galvanized steel
Baseplate Galvanized steel
Wire rope clips 4.8 mm (3/16 inch) galvanized steel
Safety features
Obstruction marking None
