NRG 200P Wind Vane
Discontinued product. See below for details.
Details
NOTE: THE NRG 200P WIND VANE HAS BEEN DISCONTINUED. PLEASE CONSIDER THE NRG 200M WIND VANE FOR YOUR MEASUREMENT NEEDS. PLEASE CONTACT US DIRECTLY WITH QUESTIONS.
Constructed of thermoplastic and stainless steel components, the 200P resists corrosion and features a high strength-to-weight ratio. The 200P is directly connected to a precision conductive plastic potentiometer located in the main body. When a constant DC excitation voltage is applied to the potentiometer, it produces an analog voltage output directly proportional to the wind direction.
The 200P includes a PVC terminal boot for additional protection from the elements.
Two wind tunnel calibrated versions of the sensor are also available. Wind tunnel calibration serves as an additional quality check and record that an individual wind vane is performing normally prior to installation on a met tower. A physical calibration report is included with each calibrated sensor. The calibration procedure is based on the following standards:
- IEC 61400-12-1: Power performance measurements of electricity producing wind turbines
- IEC 61400-12-2: Power performance of electricity producing wind turbines based on nacelle anemometry
- ISO 16622: Meteorology - sonic anemometers/thermometers
- ASTM 5366-96: Standard Test Method of Measuring the Dynamic Performance of Wind Vanes
FAQs (8)
- Connecting a #40 anemometer or 200P wind vane to a Campbell Scientific datalogger
- How should I install the sensor boot to keep out water?
- How to test an NRG Systems #200P vane.
- Installing NRG sensors on a lattice tower
- My 200P does not show readings around zero. Why is this?
- Telling the age of a 200P wind vane
- Using a long cable with a 200P wind vane
- Using very long cables with NRG sensors
Applications
Specifications
Please call us at +1 802-482-2255 for specifications.
Product Support
Customer Service
+1 802-482-2255
Mon – Fri: 8:30am – 5:00pm Eastern Time (GMT-5)
Accessories

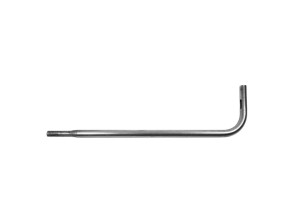

Boom Extensions
Extend and retrofit NRG booms to meet your project’s needs with our boom extensions and adapter kits.

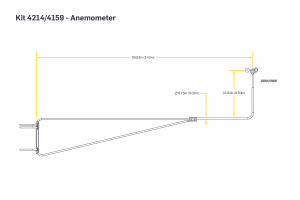

Mounting Boom | 2.4m (95"), Tubular
Mount your anemometers and wind vanes on NRG TallTowers™ according to industry best practices.

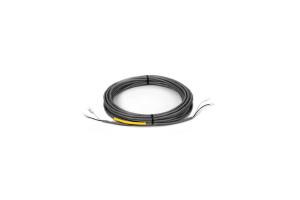

Sensor Cable Kit - 3C
Use this three-conductor (3C) cable for unheated vanes and Hall Effect anemometers.

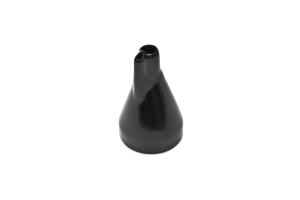

Sensor Terminal Boot
Protect your sensor terminal from exposure to the elements with a terminal boot.

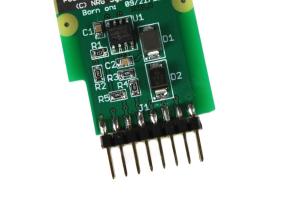

Symphonie® SCM Card
