50m XHD NOW System

Use the 50m XHD NOW System to accurately measure the wind at heights up to 50 meters.

  • 50m XHD NOW System
  • Thumbnail for 50m XHD NOW System
  • Video #1
  • Thumbnail for
  • Thumbnail for
  • Thumbnail for
  • Thumbnail for
  • Thumbnail for
  • Thumbnail for

Configuration Options

Significantly more cost-effective than purchasing components individually, this system offers a fully integrated, easy-to-install approach to wind resource assessment.

Components of a NOW System
Tower

The NOW System features the 50m XHD TallTower™, built strong for durability and safety. FAA-compliant industrial paint, guy guards, marker balls, and obstruction lighting and monitoring systems are available to ensure that your tower complies with visibility requirements. Please review your local regulations and contact our sales team to discuss which option would be best for your location.

Data Logger

All NRG NOW Systems are available with our SymphoniePRO® Data Logger. SymphoniePRO does more than just record accurate meteorological data—the logger also makes it easy for you to access and use this information from anywhere in the world. See our Data Loggers page or consult your salesperson to learn how SymphoniePRO can enhance your campaign.

Sensors

NRG sensors are precise and proven for wind resource assessment. This NOW System is configured for three levels of wind measurement with your choice of sensors:

Booms

Our side mount booms ensure that your measurement study meets or exceeds industry standard sensor offset distances. Constructed of durable galvanized steel, these booms are designed to minimize tower shadowing effects.

  • Fully integrated components designed for compatibility
  • Rugged steel tube construction
  • Compact Envirocrate™ packaging

Note: We can customize this NOW System to meet your needs. Contact us for details.

50m XHD NOW System | No Paint, Anchors, 40C – [#4063-9298-4199]

  • One (1) 50m XHD TallTower | No Paint, Anchors
  • Six (6) 40C Anemometers | MEASNET Calibrated
  • Two (2) 200M Wind Direction Vanes
  • Eight (8) Mounting Boom | 2.4m (95"), Tubular
  • One (1) T60 Temperature Sensor | 4.6m Cable
  • One (1) SymphoniePRO® Data Logger | 16-Channel
  • One (1) Symphonie Shelter Box | FRP 16x14, Tubular
  • SymphoniePRO Desktop Application software: free download
  • All necessary hose clamps included
  • Sensor cables included for installing wind vanes and redundant anemometers at heights of 50m, 40m, and 30m
  • SD Card and iPackGPS sold separately

50m XHD NOW System | Paint, Anchors, 40C – [#4572-9296-4199]

  • One (1) 50m XHD TallTower | Paint, Anchors
  • Six (6) 40C Anemometers | MEASNET Calibrated
  • Two (2) 200M Wind Direction Vanes
  • Eight (8) Mounting Boom | 2.4m (95"), Tubular
  • One (1) T60 Temperature Sensor | 4.6m Cable
  • One (1) SymphoniePRO® Data Logger | 26-Channel
  • One (1) Symphonie Shelter Box | FRP 16x14, Tubular
  • One (1) 128MB SD Flash memory card
  • Symphonie Data Retriever (SDR) software: free download
  • All necessary Signal Conditioning Modules (SCM) included
  • All necessary hose clamps included
  • Sensor cables included for installing wind vanes and redundant anemometers at heights of 50m, 40m, and 30m
  • SD card and iPackGPS sold separately

Please call us at +1 802-482-2255 for specifications.

Cable Ball Set

Cable Ball Set

Improve the visibility of your met tower with durable cable balls.

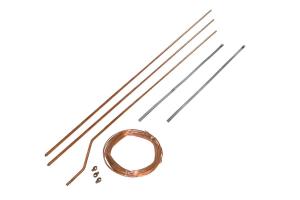

Grounding Kit

Grounding Kit

Protect your sensors and loggers from electrostatic discharge with a purpose-built grounding kit.

Guy Wire Guards

Guy Wire Guards

Mark and protect your TallTower™ guy wires with high visibility guards.

Install Kit | 60m HD, 50m XHD, 60m XHD TallTowers™

Install Kit | 60m HD, 50m XHD, 60m XHD TallTowers™

Use this tool kit for the installation of 60m HD, 50m XHD, and 60m XHD TallTowers.
